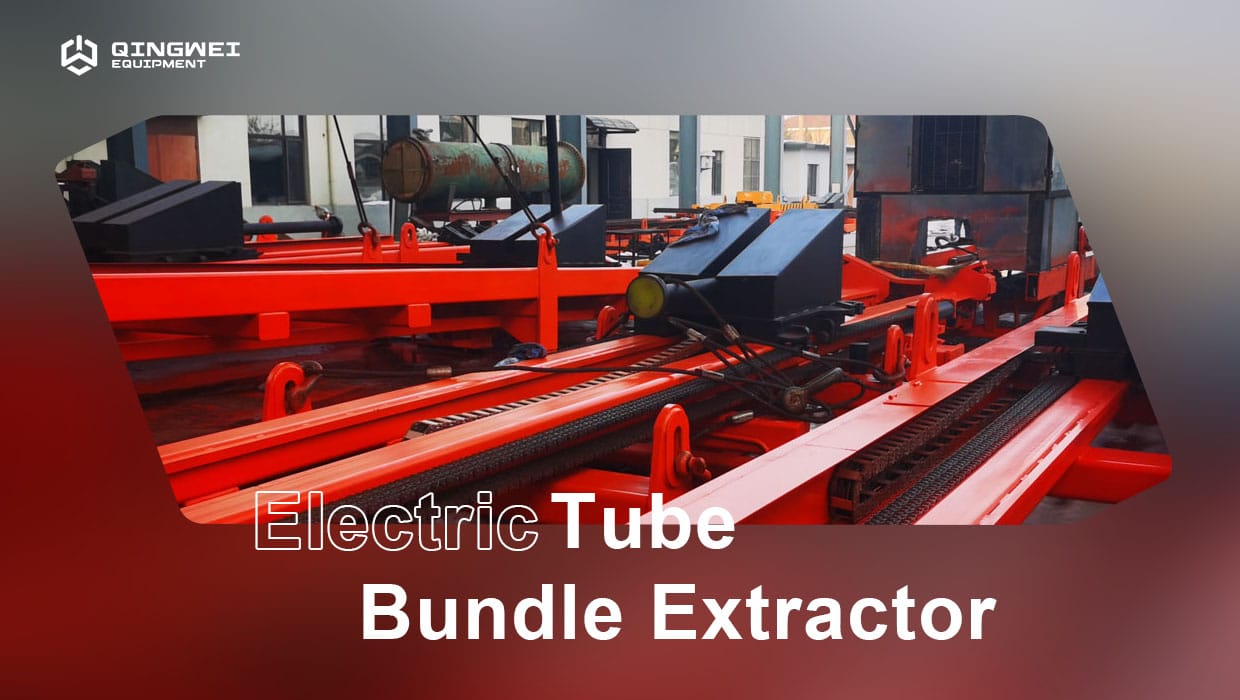

Extracteur de faisceaux tubulaires électrique
The electric heat exchanger bundle puller is a high-efficiency unit for petrochemical maintenance, driven by an electric motor and gear reducer with a sprocket-and-chain system to pull out and push in tube bundles. It supports manual, wired, and wireless remote operation, and its three-dimensional parametric structure ensures high strength, reliable performance, shorter shutdown time, and reduced labor costs.
Caractéristiques principales
-
Powerful electric drive – Motor and gearbox with chain transmission for smooth,
efficient pulling and pushing of heavy bundles.
-
Flexible operation modes – Supports manual, wired remote, and wireless remote control
for safer, easier operation.
-
Compact and durable structure – Robust 3D-designed frame ensures high reliability,
reduced downtime, and lower labor costs.
15–100
Plage de force d’extraction (t)
15–100
Capacité de charge du faisceau tubulaire (t)
6-15
Longueur du faisceau tubulaire (m)
1000–2800
Diamètre du faisceau tubulaire (mm)
Extracteur de faisceaux tubulaires électrique Models and Technical Data
Customized designs are available. Maximum bundle length up to 15 m and higher pulling force can be provided on request.
| MODÈLE | QW15-6 | QW25-6 | QW45-12 | QW60-9 | QW75-12 | QW85-12 | QW100-15 |
|---|---|---|---|---|---|---|---|
| Longueur max. du faisceau (mm) | 6000 | 6000 | 12000 | 9000 | 12000 | 12000 | 15000 |
| Diamètre max. du faisceau (mm) | 1000 | 1400 | 1800 | 2200 | 2400 | 2600 | 2800 |
| Force d’extraction max. (t) | 15 | 25 | 45 | 60 | 75 | 85 | 100 |
| Charge max. (t) | 20 | 30 | 45 | 60 | 75 | 85 | 100 |
| Poids propre (t) | 3.5 | 4.8 | 9.3 | 9.6 | 13.2 | 17.2 | 20.2 |
| Dimensions hors tout (L×l×H, mm) | 9600×1200×1200 | 9600×1600×1230 | 15600×2000×1300 | 12600×2400×1450 | 15600×2600×1550 | 15600×2800×1750 | 18600×3000×1770 |
| Puissance totale (kW) | 9 | 13.2 | 18 | 18 | 21.5 | 22.5 | 22.5 |
Pulling force test & verification
To ensure the safety and reliability of our bundle extractor, we carried out full-load
pulling force tests on site.
Les principales conditions d’essai étaient les suivantes :
Test
machine: Electric bundle extractor 65 T (QW65 series)
Test load: up to 70 T simulated
bundle weight
Durée de l’essai d’extraction continue : 30 minutes
Result: no structural
deformation, normal hydraulic temperature, stable pressure without leakage.
The test
proves that the actual pulling capacity meets and exceeds the rated value, providing a safe
margin for field operation.
FAQ sur l’extracteur de faisceaux tubulaires électrique
R : This equipment is mainly used for extracting and reinstalling tube bundles of shell-and-tube heat exchangers. It is suitable for major overhauls, shutdown maintenance, and emergency repair operations in refineries, chemical plants, LNG plants, and power plants. It is particularly well suited for projects with heavy tube bundles, severe fouling, limited on-site space, and strict requirements on minimizing downtime.
R : Le choix du modèle dépend principalement de trois paramètres :
-
Maximum tube bundle weight (including fouling) – we recommend keeping a 20–30% safety margin.
-
Tube bundle length – standard handling range is environ 6–15 m; beyond this can be customized.
-
Site conditions – for example, whether there is heavy fouling and whether frequent continuous operation is required.
For instance, if the maximum tube bundle weight is 45 t, we recommend selecting the 65T model to ensure sufficient pulling force to deal with fouling and potential sticking.
R : For standard models, the rated pulling capacity is approximately 25–100 tons. Les paramètres typiques des faisceaux pris en charge sont :
-
Longueur du faisceau : environ 6–15 m
-
Diamètre du faisceau : environ 1000–2800 mm
The exact applicability should be checked against the actual heat exchanger drawings, and we can verify the parameters and recommend a suitable model based on your project data.
R :
-
A relatively flat and solid ground is required for placing the main unit and installing the rails.
-
The ground must have sufficient load-bearing capacity for the equipment weight and the tube bundle weight.
-
Reserve enough operating space in the length direction of the equipment so that the tube bundle can be fully extracted.
-
Confirm in advance the lifting conditions (crane capacity, lifting points, etc.).
If the site conditions are limited, we can provide simplified layout recommendations or customized solutions.
R : For standard models without special customization, the typical delivery time is
about 3 à 6 mois after order
confirmation.
If you require special pulling
capacity, extended rails, explosion-proof configuration, or other customized options,
the delivery time may be slightly longer. The exact schedule will be confirmed in our
official quotation and contract.
