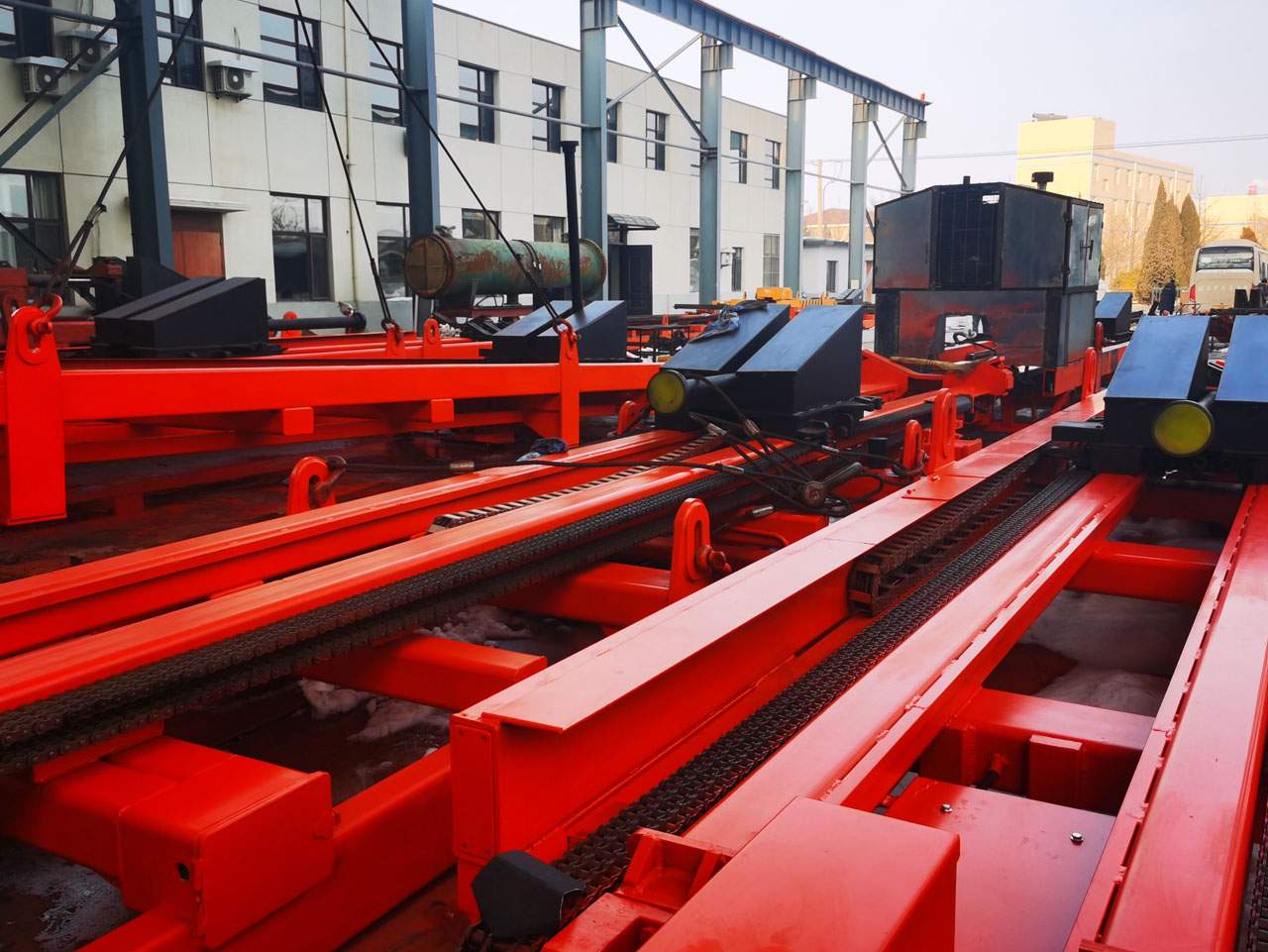

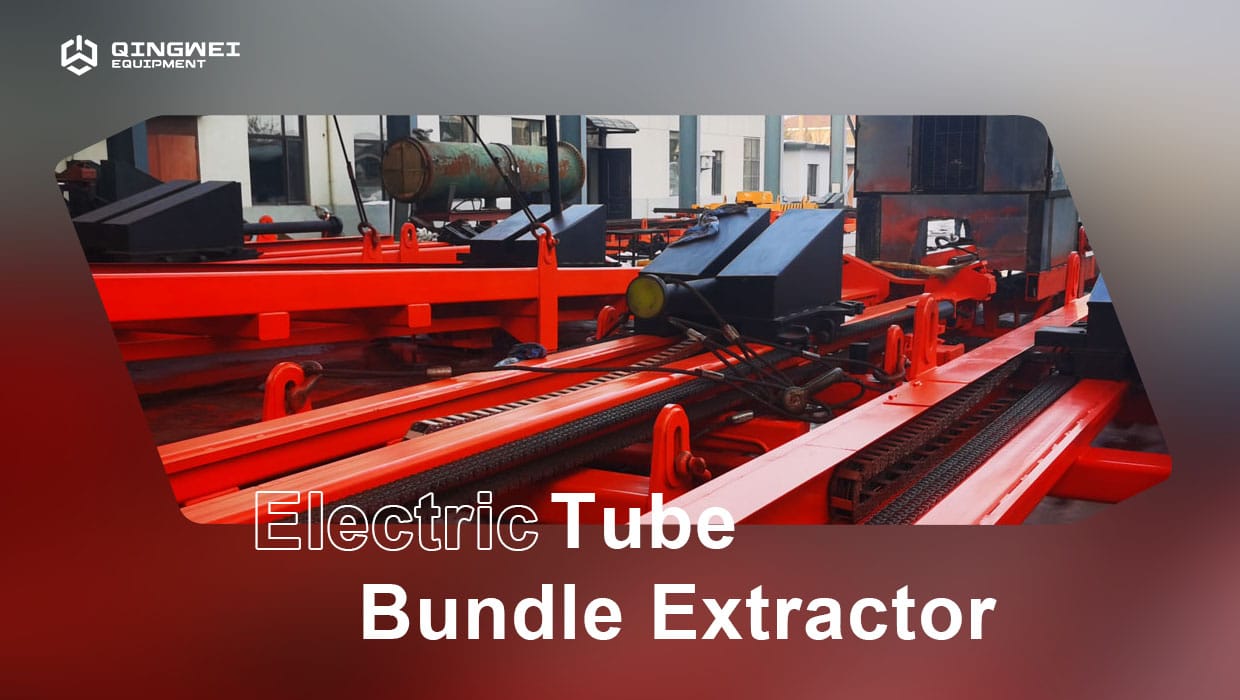

Electric Tube Bundle Extractor & Bundle Puller
Qingwei electric tube bundle extractors provide a powered configuration for controlled removal and reinsertion of heat exchanger bundles where a suitable industrial electrical supply is available. Pulling capacity, working length, bundle support, controls and the final drive arrangement are confirmed against approved project technical data.

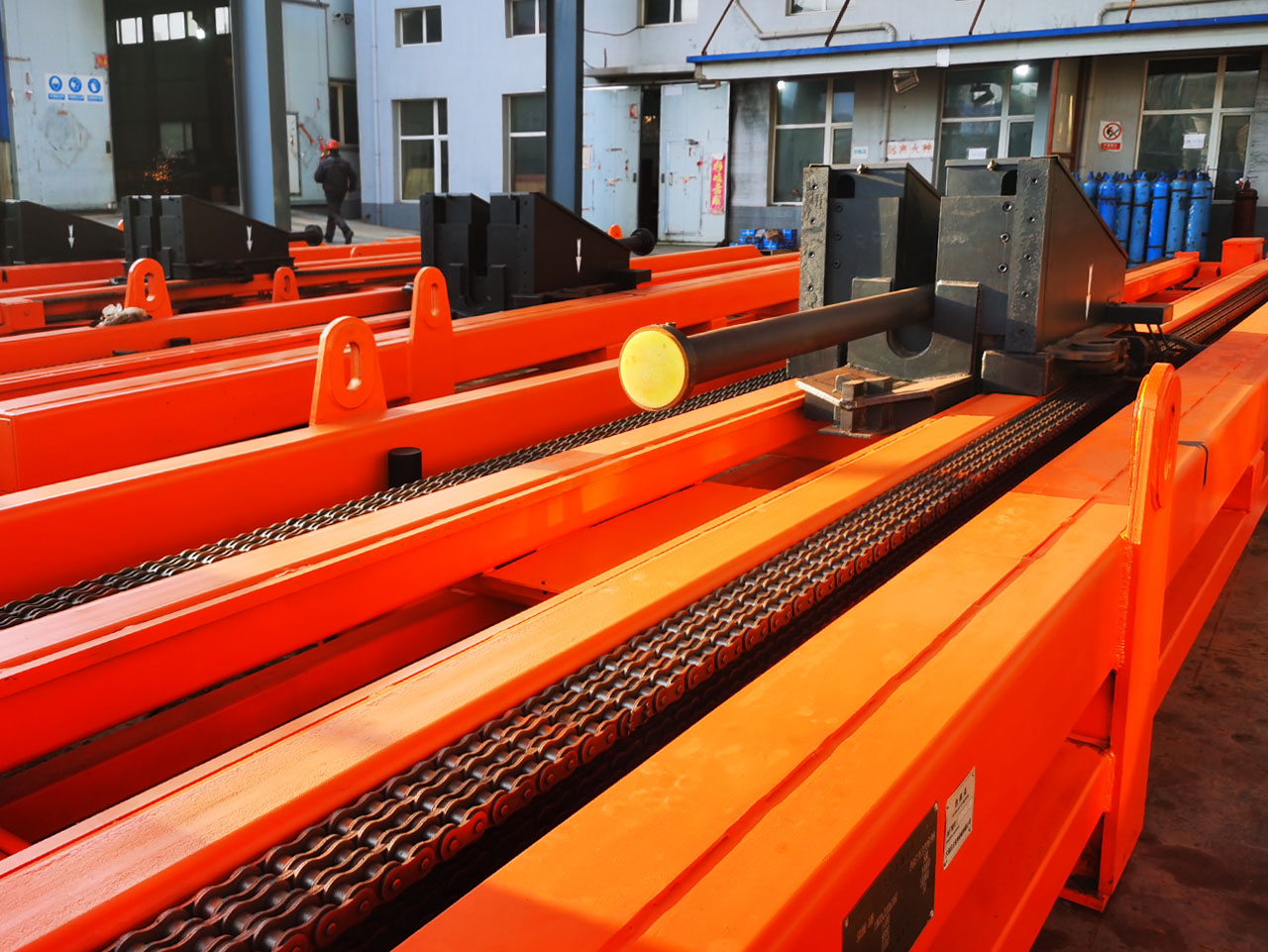

Heat Exchanger Bundle PullerSpecial Features
- Electric power source – Intended for sites with a suitable and stable industrial electrical supply.
- Project-specific controls – Control options are confirmed from the approved equipment configuration.

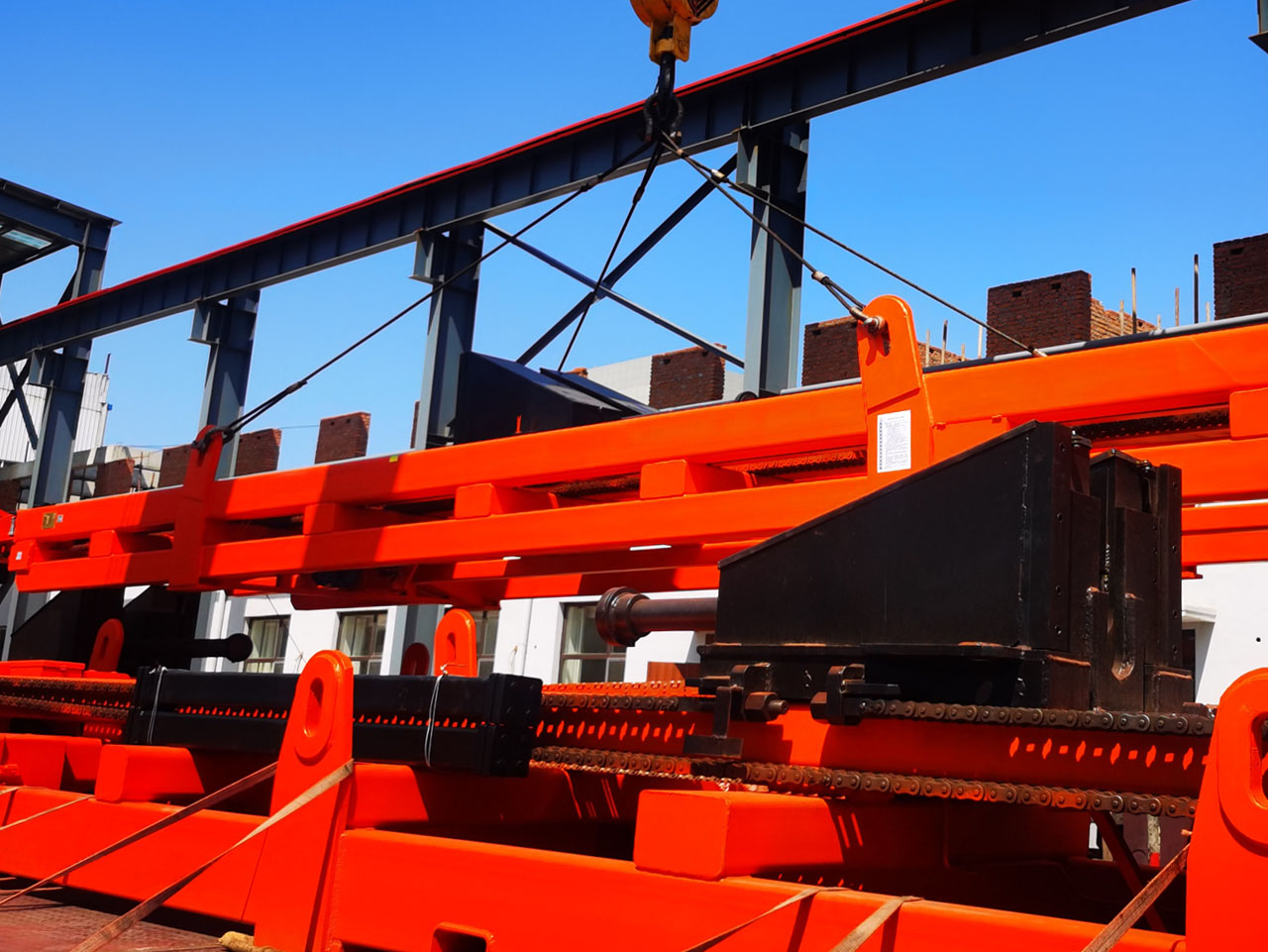

- Configured structure – Frame, working length and support arrangement are reviewed against the actual bundle and site data.
Key Specifications

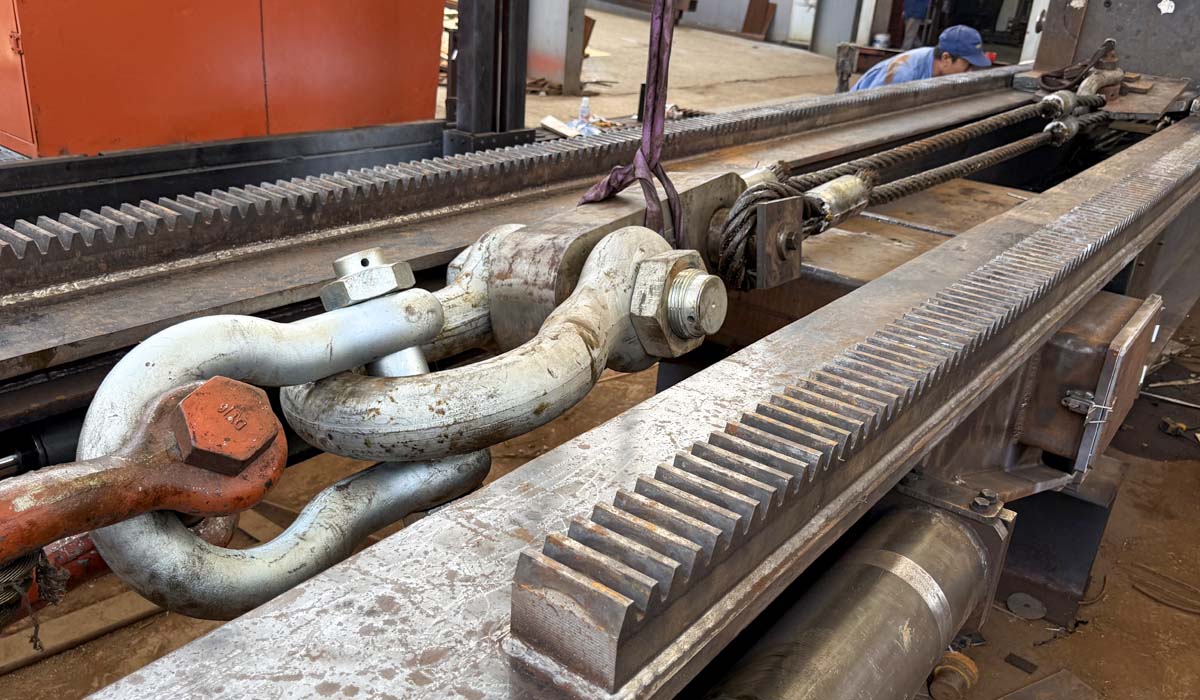

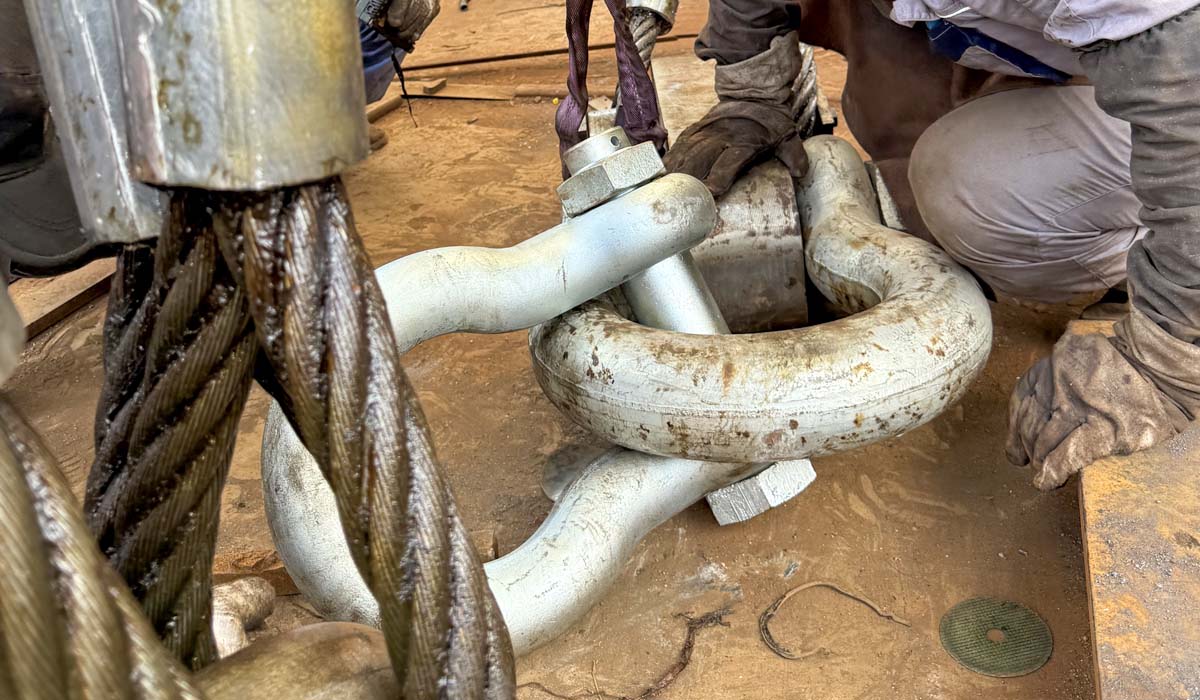

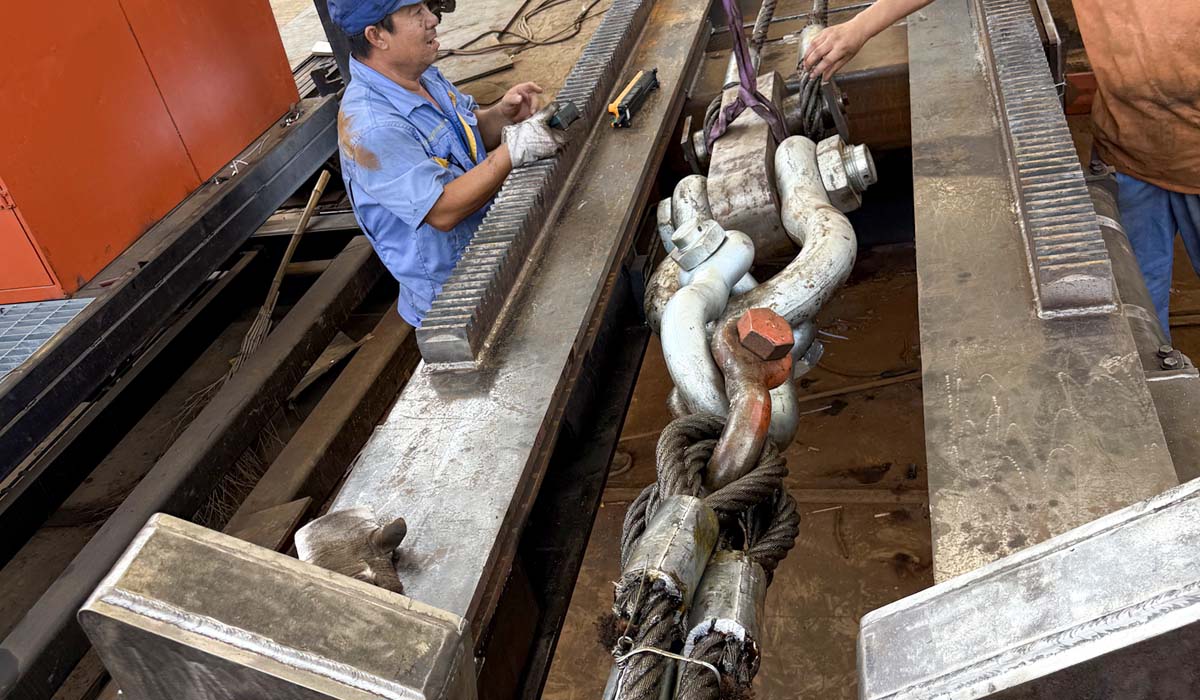

Pulling force range
(T)
Tube bundle length range
(m)
Maximum bundle diameter
(mm)
Pulling speed
(m/min)
Models & Technical Data
The current standard range covers 15–100T. Final configuration is confirmed according to actual bundle data and project requirements.
| Model | Bundle Length | Bundle Diameter | Max. Pulling Force | Max. Bundle Load | Weight | Overall Dimensions L×W×H | Total Power |
|---|---|---|---|---|---|---|---|
| BE15T-6EMP | 6000 mm | Ø1000 mm | 15T | 20T | 3.5T | 9600×1200×1200 mm | 9 kW |
| BE20T-6EMP | 6000 mm | Ø1200 mm | 20T | 20T | 3.5T | 9600×1400×1200 mm | 13.2 kW |
| BE30T-6EMP | 6000 mm | Ø1400 mm | 30T | 30T | 4.8T | 9600×1600×1230 mm | 13.2 kW |
| BE40T-6EMP | 6000 mm | Ø1800 mm | 40T | 40T | 6.1T | 9600×2000×1300 mm | 17.2 kW |
| BE45T-6EMP | 6000 mm | Ø2000 mm | 45T | 45T | 7.8T | 9600×2200×1350 mm | 18 kW |
| BE45T-9EMP | 9000 mm | Ø1800 mm | 45T | 45T | 6.9T | 12600×2000×1300 mm | 17.2 kW |
| BE45T-12EMP | 12000 mm | Ø1800 mm | 45T | 45T | 9.3T | 15600×2000×1300 mm | 18 kW |
| BE50T-9EMP | 9000 mm | Ø2000 mm | 50T | 50T | 8.5T | 12600×2200×1350 mm | 18 kW |
| BE55T-12EMP | 12000 mm | Ø2000 mm | 55T | 55T | 9.1T | 15600×2200×1350 mm | 18 kW |
| BE60T-9EMP | 9000 mm | Ø2200 mm | 60T | 60T | 9.6T | 12600×2400×1450 mm | 18 kW |
| BE65T-12EMP | 12000 mm | Ø2200 mm | 65T | 65T | 10.8T | 15600×2400×1450 mm | 21.5 kW |
| BE70T-9EMP | 9000 mm | Ø2400 mm | 70T | 70T | 12.3T | 12600×2600×1550 mm | 21.5 kW |
| BE75T-12EMP | 12000 mm | Ø2400 mm | 75T | 75T | 13.2T | 15600×2600×1550 mm | 21.5 kW |
| BE80T-9EMP | 9000 mm | Ø2600 mm | 80T | 80T | 16.1T | 12600×2800×1750 mm | 22.5 kW |
| BE85T-12EMP | 12000 mm | Ø2600 mm | 85T | 85T | 17.2T | 15600×2800×1750 mm | 22.5 kW |
| BE90T-15EMP | 15000 mm | Ø2600 mm | 90T | 90T | 18.8T | 18600×2800×1750 mm | 22.5 kW |
| BE95T-12EMP | 12000 mm | Ø2800 mm | 95T | 95T | 19.3T | 15600×3000×1770 mm | 22.5 kW |
| BE100T-15EMP | 15000 mm | Ø2800 mm | 100T | 100T | 20.2T | 18600×3000×1770 mm | 22.5 kW |
Project References
Selected Electric Bundle Extractor Projects

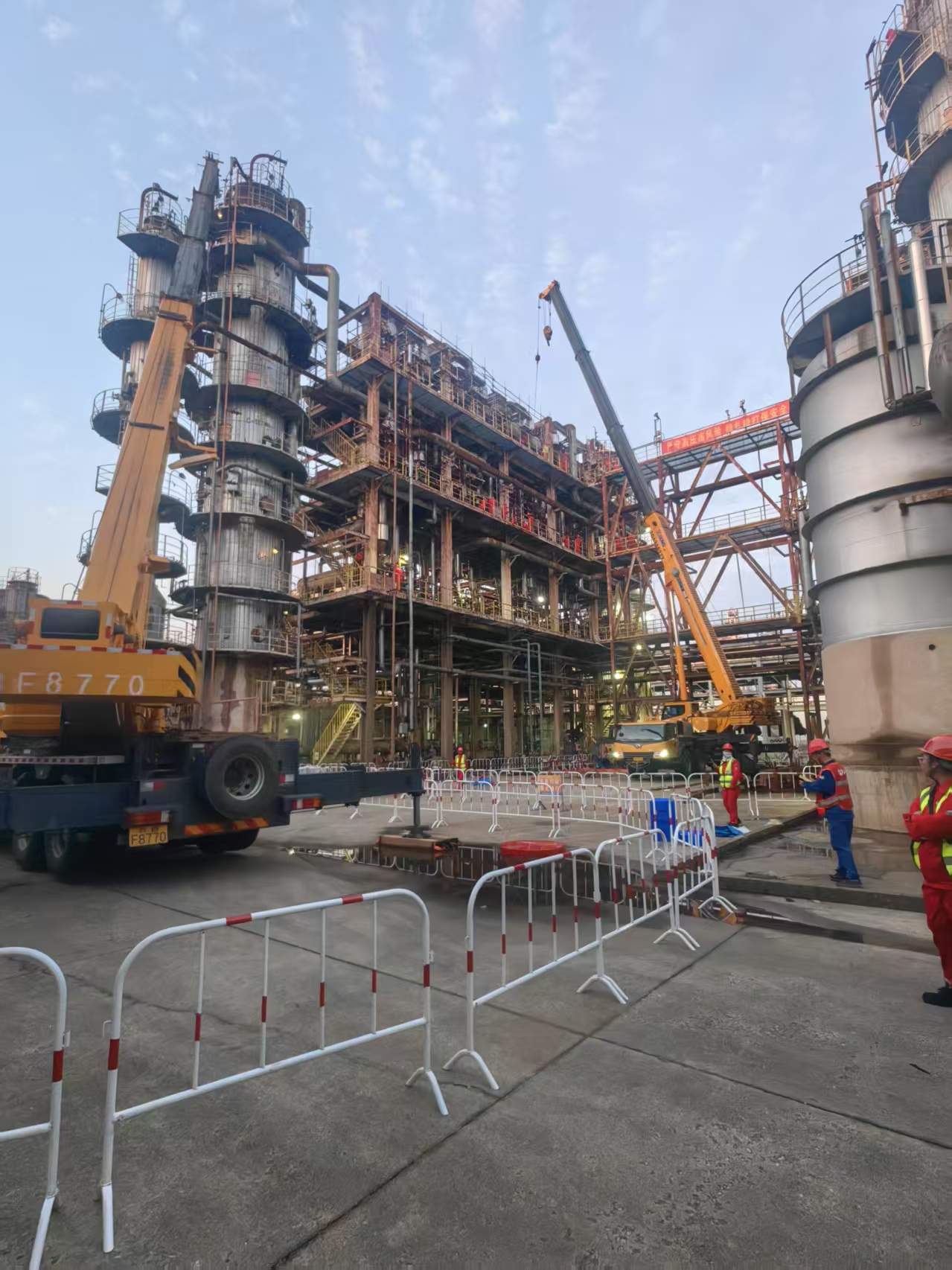

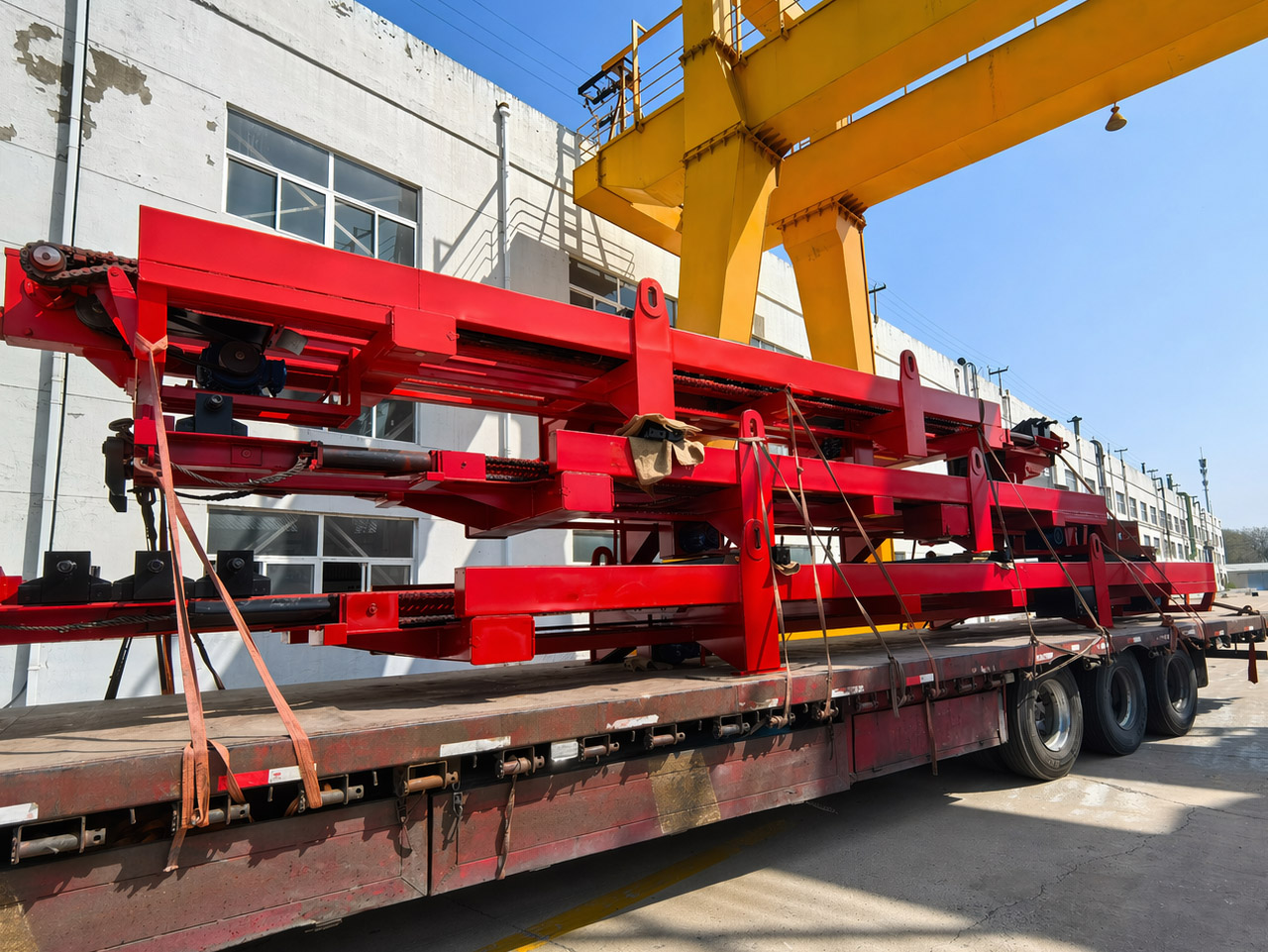

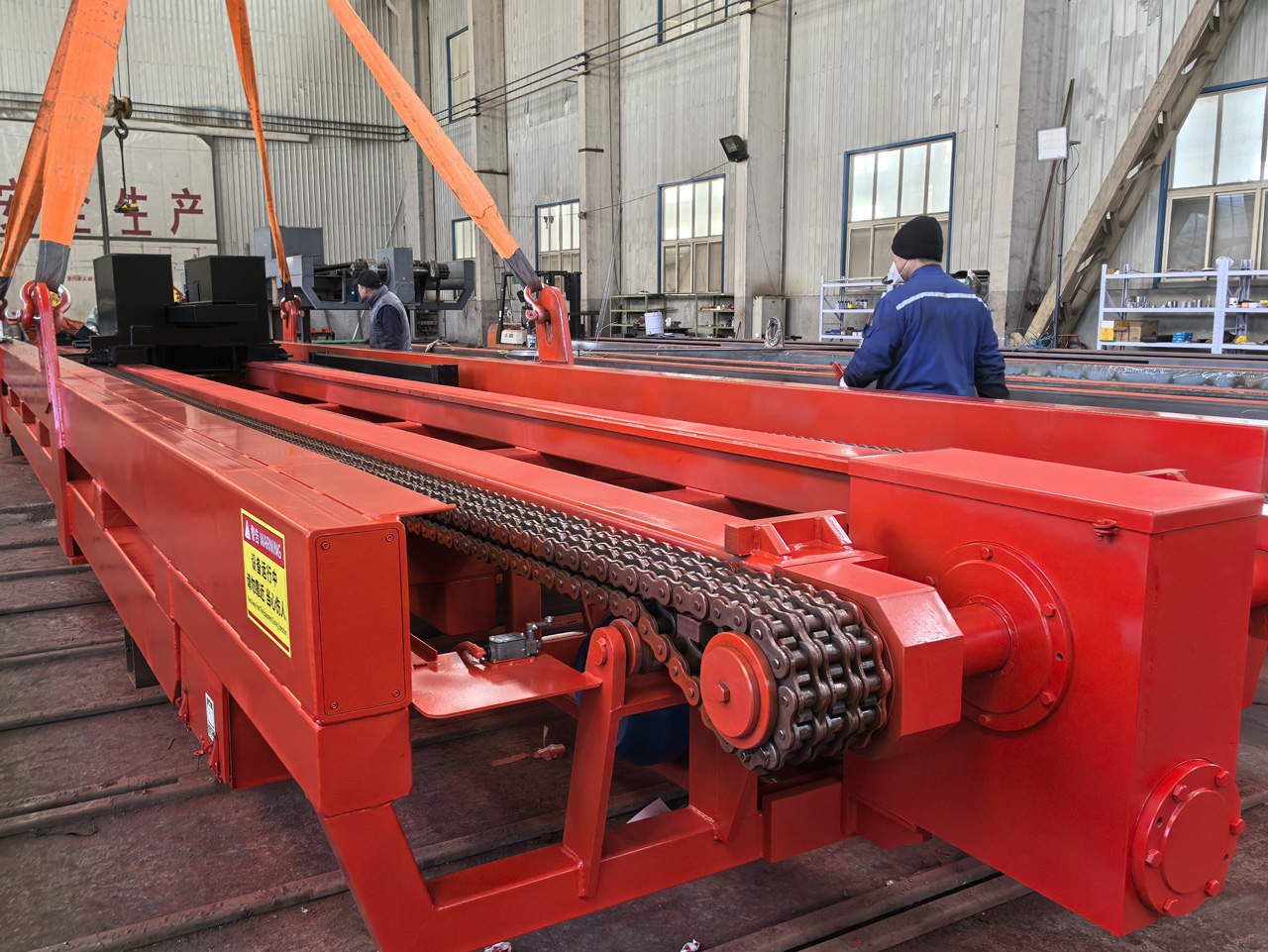

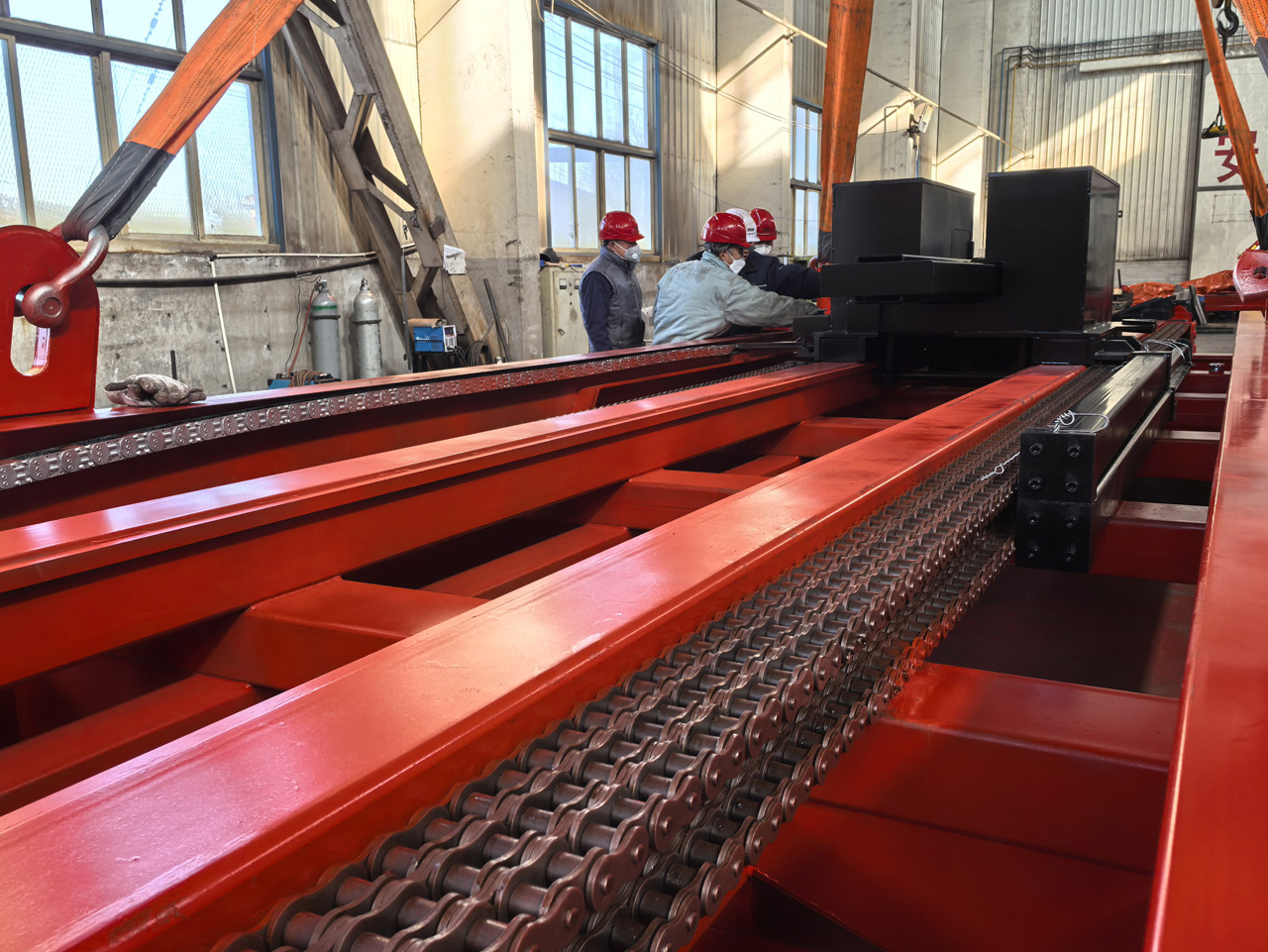

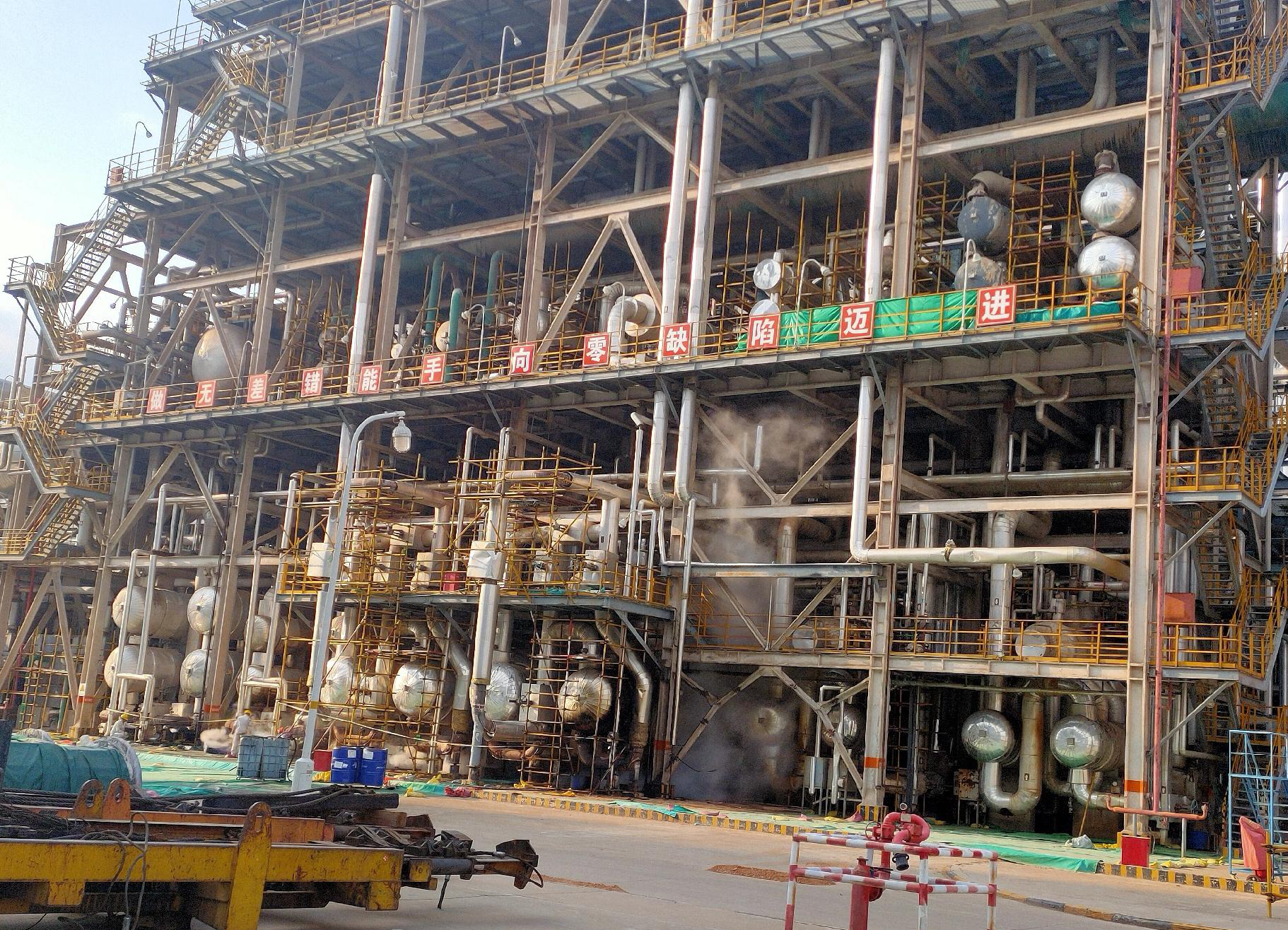

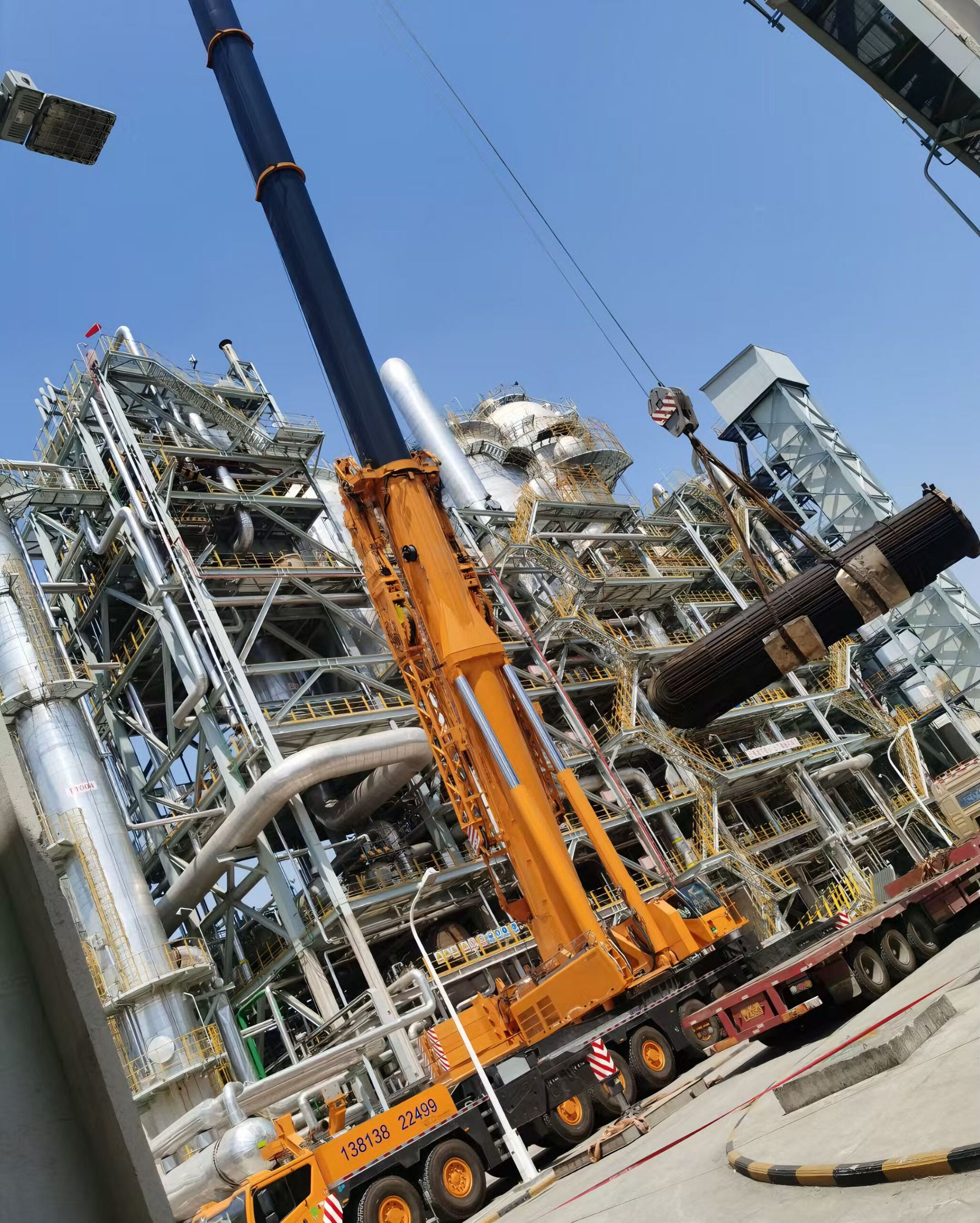

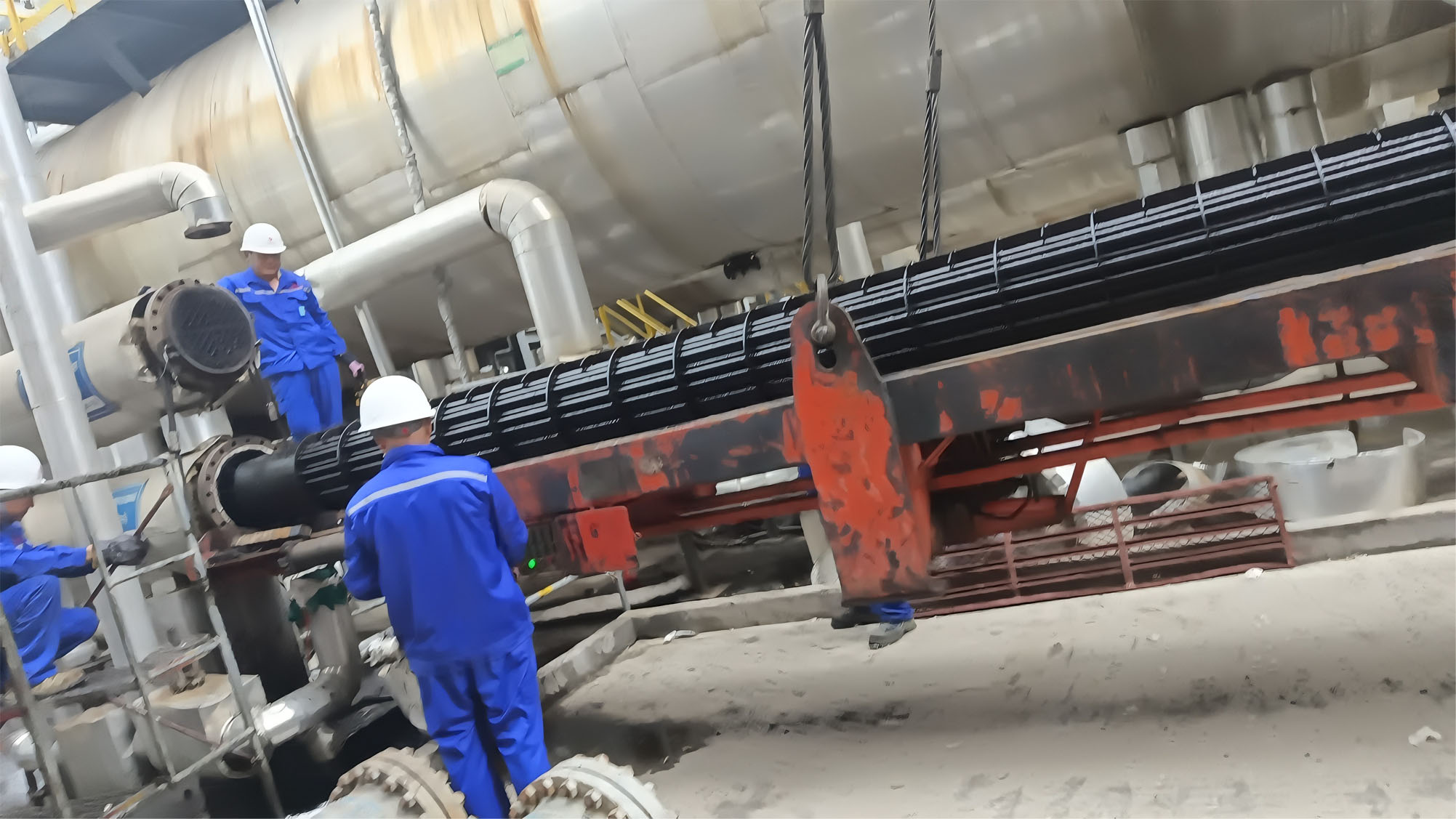

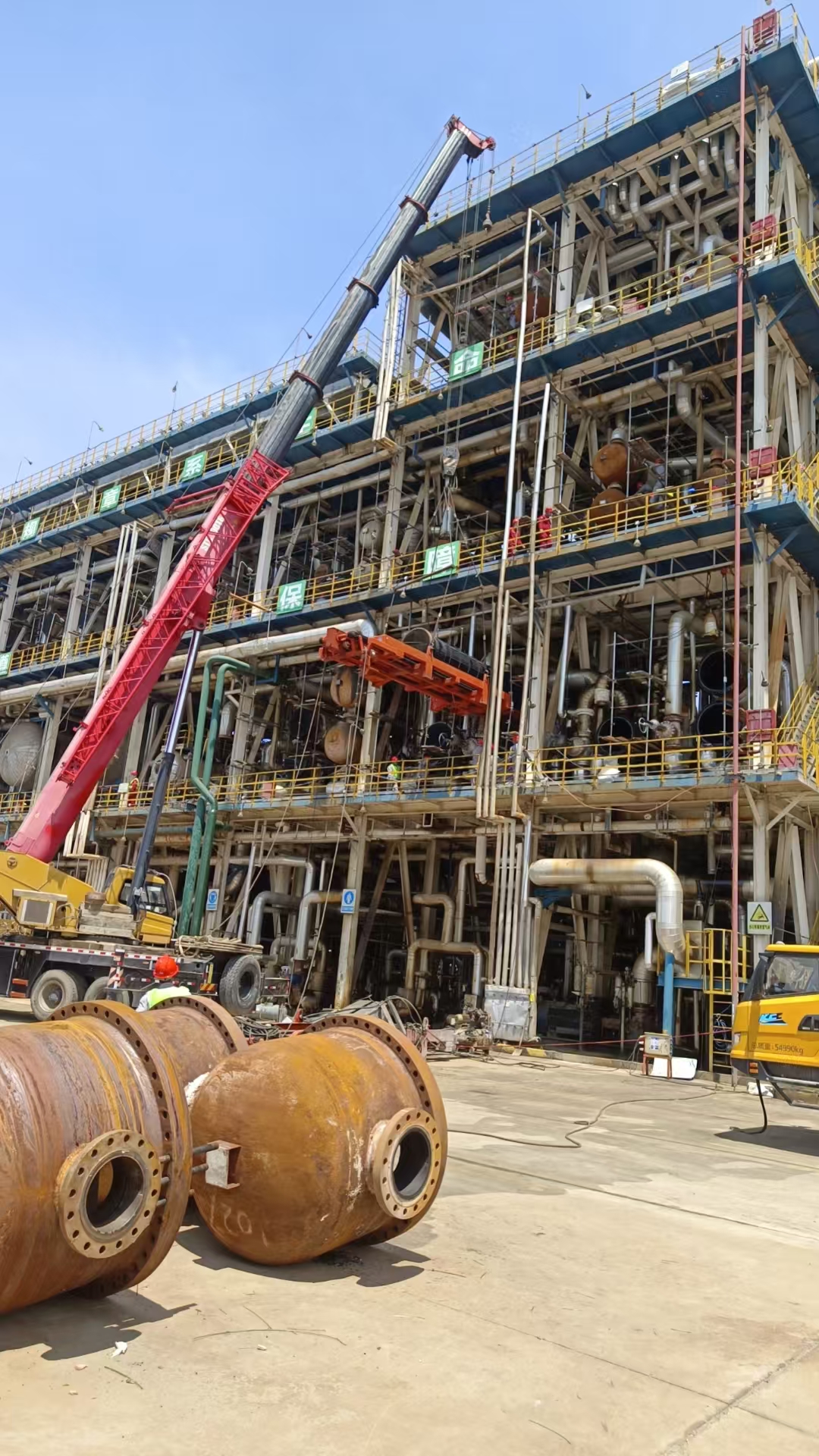

Selected Qingwei electric tube bundle extractor references for refinery, petrochemical and heat exchanger maintenance applications.
Electric Bundle Extractor FAQ
Q1: When should I choose an electric bundle extractor?
A: An electric bundle extractor is suitable for maintenance sites with a stable industrial power supply. It is a practical choice where electric operation is preferred and the required power supply is readily available at the working area.
Q2: What power supply information should be confirmed before ordering?
A: The required voltage, frequency and phase should be confirmed before production. Electrical specifications can be configured according to the power supply conditions of the project.
Q3: What information is required to select the right model?
A: To recommend a suitable model, we normally confirm the tube bundle weight, length and diameter, heat exchanger centerline height, and the available working and lifting space on site. Based on these conditions, we can determine the appropriate pulling capacity and machine configuration.
Q4: What control options are available for the electric bundle extractor?
A: Depending on the machine configuration, the extractor can be equipped with local control, wired control and wireless remote control. The control arrangement can be confirmed according to the operating requirements of the project.
Q5: What should be confirmed before using an electric bundle extractor in a hazardous or classified area?
A: For use in a hazardous or classified area, the site classification and the project's electrical and safety requirements should be confirmed in advance. The power, electrical and other relevant configurations can then be evaluated against the specified requirements.
