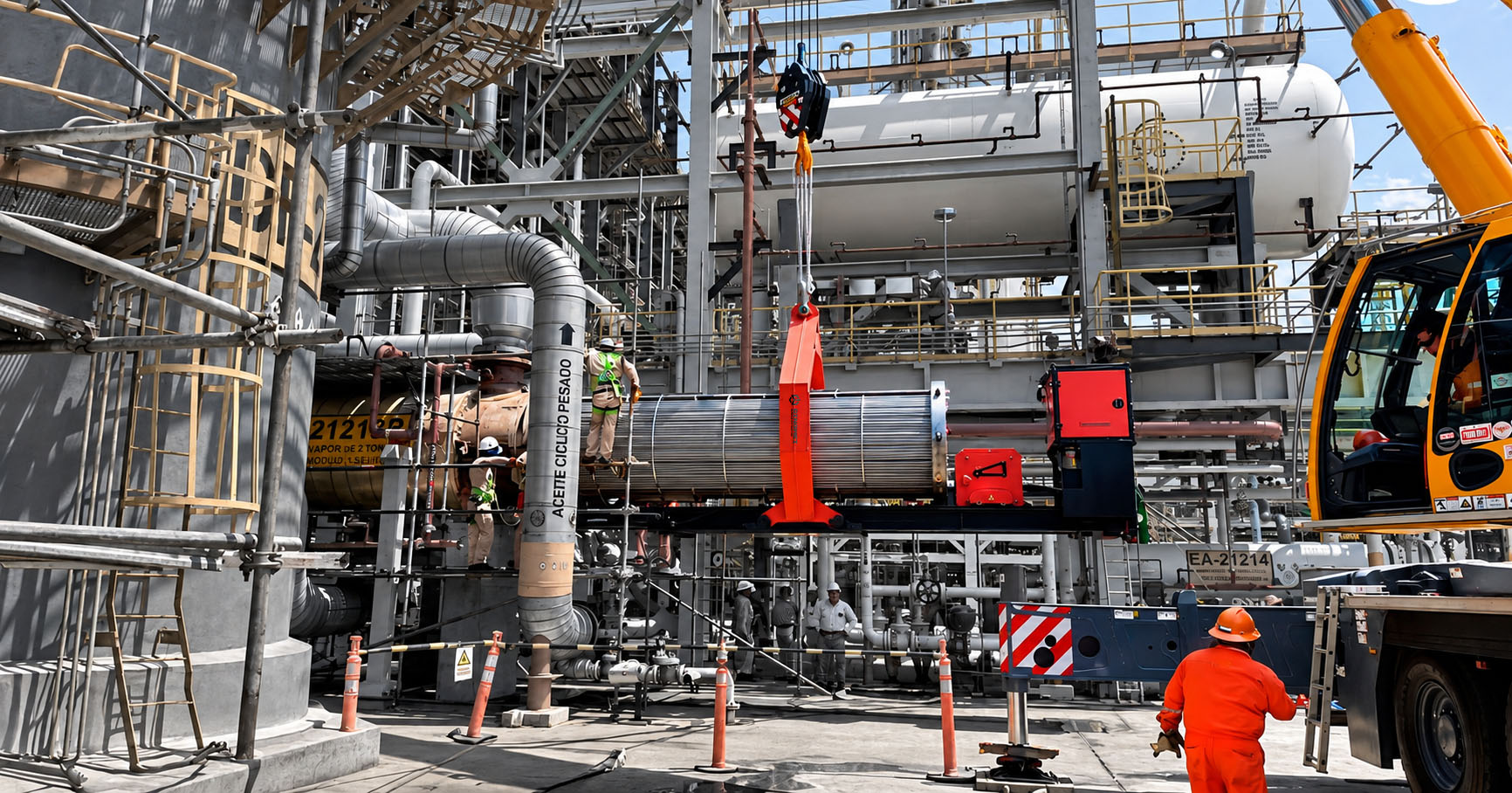

Qingwei tube bundle extractor handling a heat exchanger bundle at a refinery

Tube Bundle Extraction Equipment

Tube Bundle Extractor & Bundle Puller

Compare diesel and electric tube bundle extractors and heat exchanger bundle pullers. Review capacities, selection data and request a project quotation.

Explore Diesel RangeExplore Electric Range

Tube Bundle Extractor

Diesel Tube Bundle Extractors

Built for maintenance sites where reliable electrical power is unavailable, restricted, or impractical. The self-contained diesel-hydraulic system allows maintenance teams to work with less dependence on site power arrangements.

  • No Suitable Power at the Work Area?Operate independently without relying on a fixed site electrical supply.
  • Working Across Different Maintenance Areas?Self-contained power makes deployment easier across temporary or changing maintenance locations.
  • Working Under Shutdown Constraints?Reduce dependence on temporary electrical connections and site power arrangements before bundle extraction and insertion work begins.

Standard models: BE25BE45BE65BE100BE125

View Diesel Models
Diesel tube bundle extractor in the Qingwei manufacturing facility

Tube Bundle Extractor

Electric Tube Bundle Extractors

Designed for plants and maintenance areas where a suitable electrical supply is already available. The final drive and control configuration is confirmed from approved project technical data before quotation.

  • Reliable Plant Power Already Available?Use the existing electrical infrastructure instead of adding an onboard diesel power source.
  • Want to Avoid Fuel Handling at the Work Area?Electric drive eliminates the need for diesel refueling and engine fuel handling during operation.
  • Working Mainly Within a Fixed Plant?A practical configuration for workshops, maintenance areas, and plant locations with established electrical infrastructure.

Standard configurations: 15–100T

View Electric Range

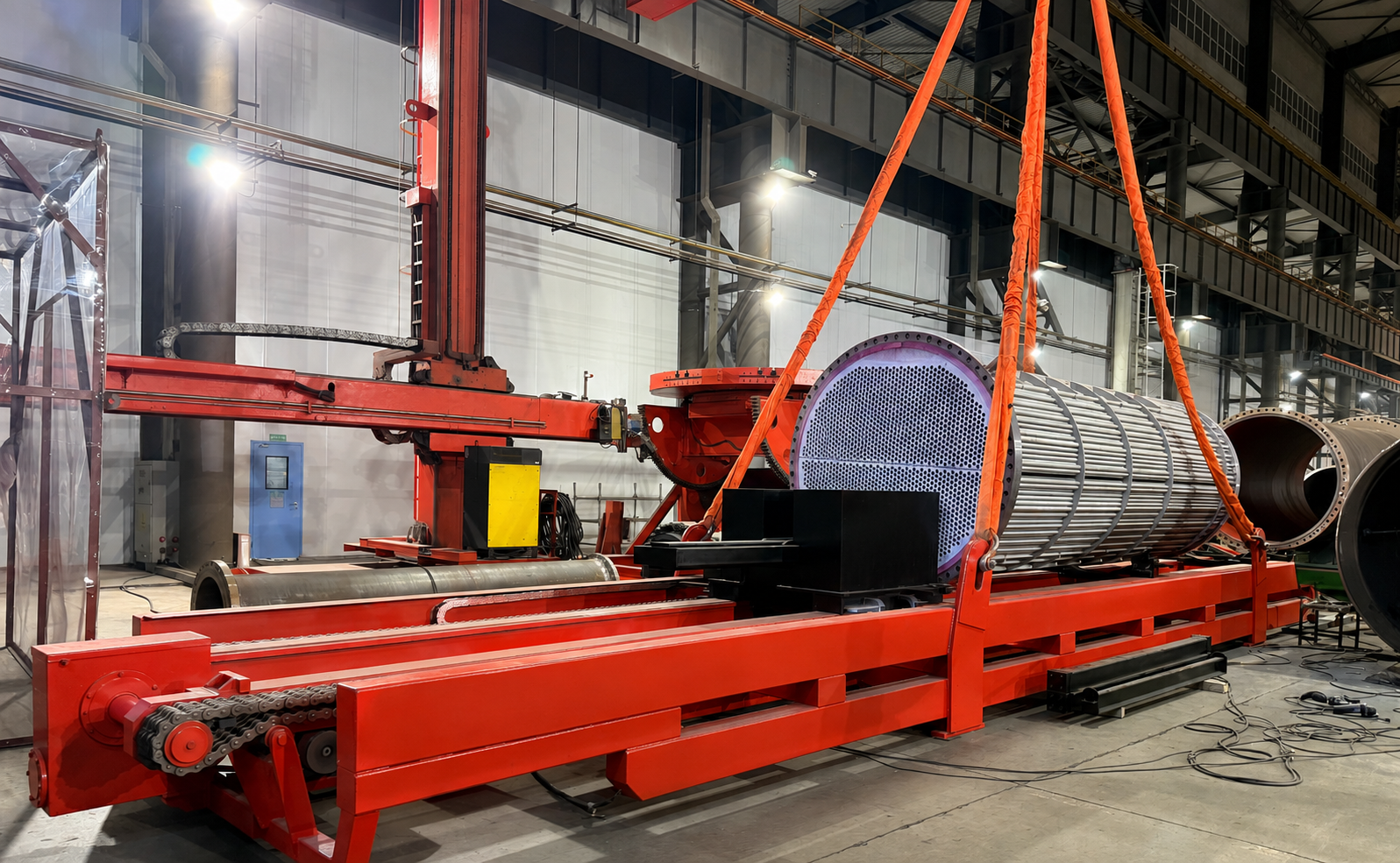

Electric tube bundle extractor supporting a heat exchanger tube bundle in the Qingwei workshop

Selection note

Bundle Capacity and Pulling Force Are Different

Rated bundle load describes the tube bundle weight the machine is designed to support. Pulling force describes the force available to start and control extraction, which can be affected by fouling, corrosion, sticking and alignment conditions.

Pulling Force Selection Guide

Manufacturing & FAT

Build and Test Against the Confirmed Configuration

View Manufacturing
  1. 01

    Fabrication

    Structural components are fabricated to the confirmed project configuration.

  2. 02

    Assembly

    Mechanical, power and control systems are assembled as one machine.

  3. 03

    Pulling-force test

    Rated pulling performance is checked when included in the confirmed FAT plan.

  4. 04

    Functional test

    Completed-machine movement, controls and safety functions are checked before release.

Selected projects

Verified Equipment References

Tube bundle extraction equipment at an industrial facility in Saudi ArabiaSaudi ArabiaSaudi Arabia BE65 Project ReferenceQingwei tube bundle extractor suspended beneath an overhead crane inside the factoryUnited Arab EmiratesUAE BE45 Project ReferenceDiesel-hydraulic tube bundle extractor being lifted at an industrial facilityKuwaitKuwait Historical Diesel Project ReferenceTube bundle extraction equipment supporting a heat exchanger bundle at an industrial facilityIraqIraq BE45T Project Reference

Procurement FAQ

Questions Before Technical Selection

Is a tube bundle extractor the same as a bundle puller?

Yes. In heat exchanger maintenance, both terms commonly describe equipment used to remove, support and reinstall a shell-and-tube exchanger bundle.

How a Tube Bundle Extractor Works
Does bundle weight equal required pulling force?

No. Fouling, corrosion, deposits, adhesion, alignment and previous extraction conditions can make actual pulling resistance higher than the bundle weight.

What data is needed for model selection?

Send the bundle weight, length and diameter, exchanger drawing, centreline height, available working space, site photos and previous extraction condition.

When should diesel power be selected?

Diesel is practical where a suitable industrial electrical supply is unavailable or the machine must move between temporary outdoor work areas.

When should electric power be selected?

Electric power can suit fixed plants or workshops with a suitable supply. The actual transmission and control arrangement must be confirmed from approved technical data.

Can one machine be used for reinsertion?

A correctly configured extractor can support controlled reinsertion after cleaning, inspection or repair, subject to the approved site procedure and alignment plan.

How is tube bundle extractor price determined?

Tube bundle extractor price depends on the confirmed bundle load, required pulling force, working length, bundle diameter, diesel or electric power, project-specific configuration, FAT scope and delivery terms.

Read the Tube Bundle Extractor Price Guide Request a Project Quotation

RFQ data

Send Your Bundle Data for Model Selection

You do not need to know the required pulling force before contacting us. Share the available exchanger and site information, and Qingwei can review a suitable diesel or electric configuration.

  • Maximum tube bundle weight
  • Bundle length
  • Tube sheet / bundle diameter
  • Working height / exchanger centerline height
  • Available working space or site photos
  • Diesel or electric preference
  • Project country / site
  • Known difficult extraction history, if available
Request Model Recommendation

Not sure about the parameters? Send us your heat exchanger drawing or datasheet.
