BE100

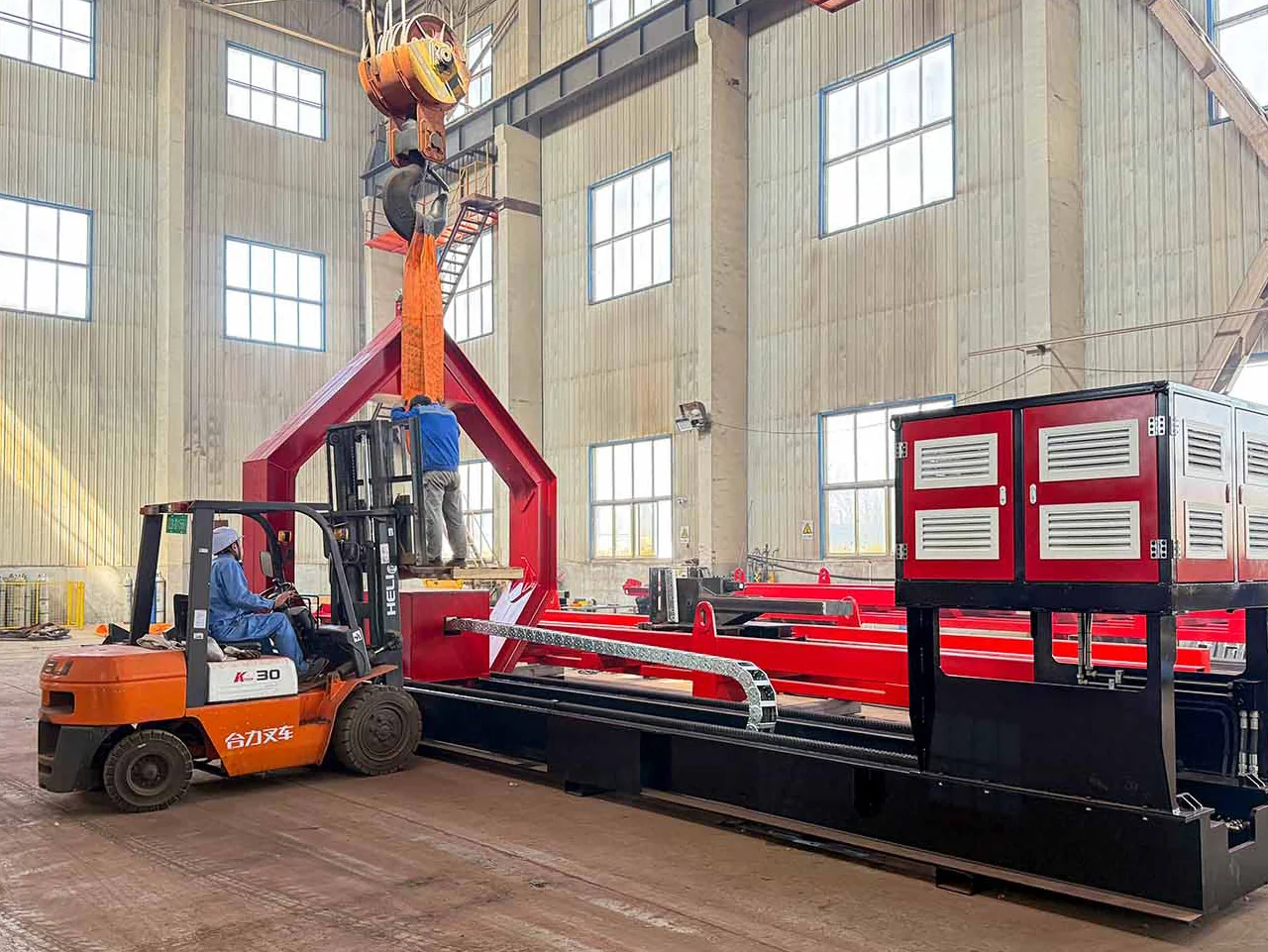

BE100 Diesel Tube Bundle Extractor
BE100-3000-12D is the BE100 diesel-hydraulic standard model, with a 100 T rated bundle load, 12 m standard bundle length and 10–15 m modular coverage.
- 100 T
- Rated Bundle Load
- 100 tf / 981 kN
- Maximum Pulling Force
- Ø2500–3000 mm
- Tube Sheet Diameter
Technical Data
Technical Specifications
These are the approved Qingwei BE Series standard values. Final equipment selection must also be checked against actual bundle weight, extraction resistance, exchanger height, site space and working conditions.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Series | BE100 | Complete Model | BE100-3000-12D |
| Rated Bundle Load | 100 T | Maximum Pulling Force | 100 tf / 981 kN |
| Applicable Tube Sheet Diameter | Ø2500–3000 mm | Maximum Model Diameter | Ø3000 mm |
| Standard Bundle Length | 12 m | Modular Coverage Length | 10–15 m |
