Heat Exchanger Bundle Extraction Solutions

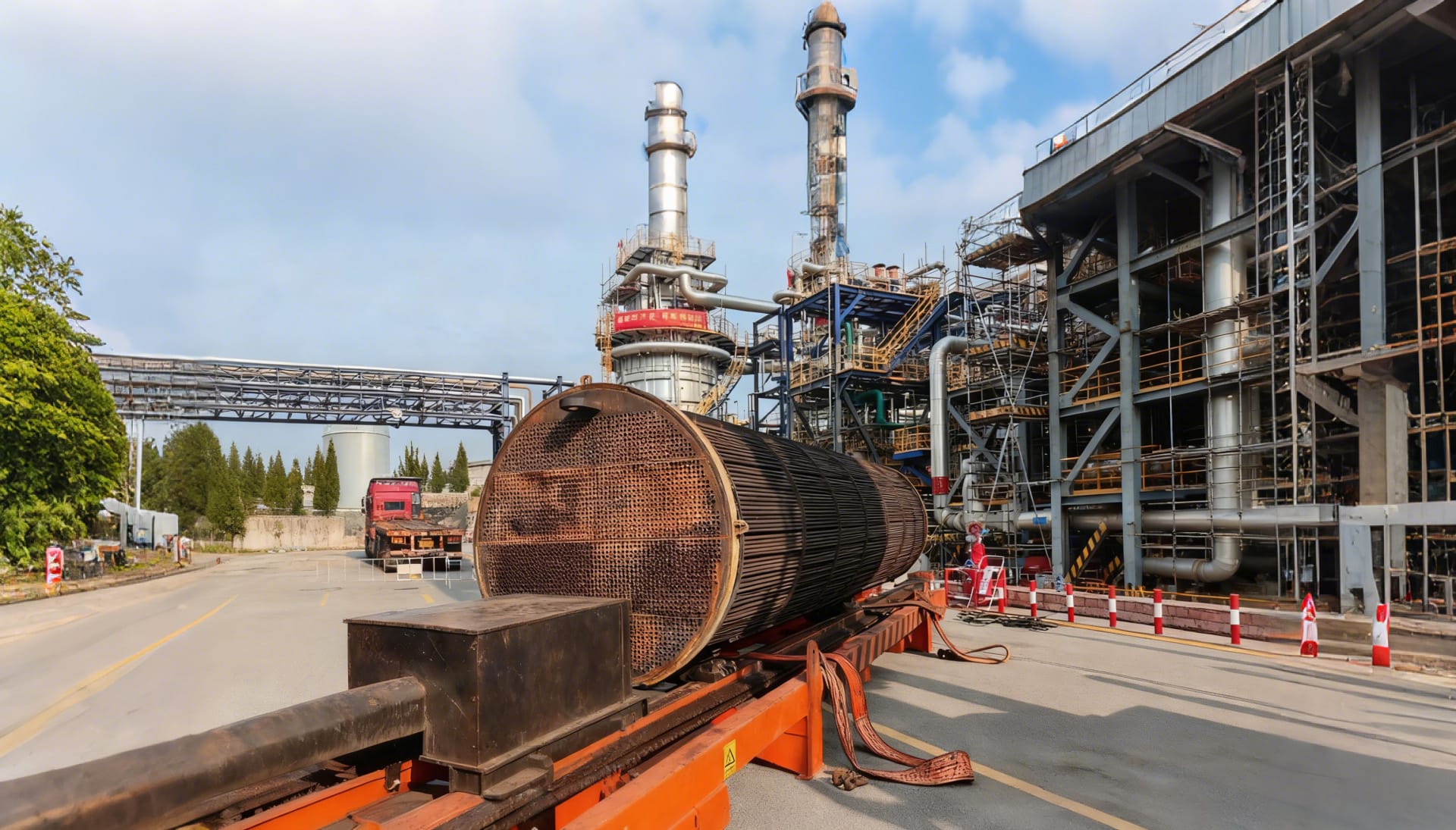

Qingwei’s bundle extractors provide a safe and efficient solution for heat exchanger maintenance. They replace cranes, reduce manpower, and enhance HSE performance. Proven in refineries and petrochemical plants across the Middle East, LATAM, CIS, and APAC.
Challenges in Tube Bundle Extraction
Tube Bundle Removal and Reinsertion Process
Our tube bundle extractor provides a complete solution for controlled tube bundle removal and reinsertion during shutdowns and turnaround maintenance. The system combines stable support, hydraulic pulling force and remote operation to reduce risky manual pulling, uncontrolled movement and crane-only extraction work.
Position & Clamp
The extractor is aligned with the heat exchanger and securely clamped to the channel.
Hydraulic Pulling
Controlled hydraulic force smoothly pulls out the tube bundle while operators stay clear of the danger zone.
Transport & Cleaning
The bundle is placed on a trolley or rollers and moved to the cleaning or inspection area.
Reinsertion
After cleaning, the same equipment is used to push the tube bundle back into the shell quickly and safely.
Ready to see which tube bundle extractor is right for your plant and exchangers?
Choose Electric or Diesel Tube Bundle Extractors
Electric Bundle Extractors
- Ideal for plants with stable power supply and strict emission regulations
- Lower noise and zero on-site exhaust emissions
- Suitable for indoor areas or enclosed units
Diesel Bundle Extractors
- Self-contained power pack – no external electricity needed
- Perfect for remote areas and outdoor shutdowns
- High mobility for large sites and multiple units
Tube Bundle Extraction by the Numbers
Our tube bundle extractors have been used for heat exchanger maintenance, refinery shutdowns and petrochemical turnaround projects around the world.
These figures show the impact on safety, efficiency and project performance.
Cut Manpower, Save Hours – Watch the Bundle Extractor Work
Frequently Asked Questions About Bundle Extraction Solutions
Common questions from refineries, petrochemical plants, heat exchanger service companies and maintenance contractors when selecting tube bundle extractor equipment for shutdown, turnaround and bundle extraction service projects.
What is a tube bundle extraction solution?
A tube bundle extraction solution is a complete method for removing and reinstalling tube bundles from shell-and-tube heat exchangers during maintenance, shutdowns and turnarounds. It combines a tube bundle extractor, hydraulic pulling system, support structure, operating controls and technical support for safer bundle handling.
What equipment is used for bundle extraction services?
Bundle extraction services usually require a tube bundle extractor, also known as a bundle puller. Compared with manual pulling or crane-only operations, a bundle extractor provides controlled hydraulic force, stable support and safer tube bundle removal and reinsertion.
Can a bundle extractor replace a crane?
In many heat exchanger maintenance jobs, a bundle extractor can reduce the need for crane-based pulling by providing controlled horizontal extraction and reinsertion. Cranes may still be used for lifting, positioning or site logistics depending on the plant layout.
Why is a tube bundle extractor suitable for petrochemical maintenance?
Petrochemical plants often have heavy shell-and-tube heat exchangers, limited working space and strict shutdown schedules. A tube bundle extractor helps reduce manpower, improve safety, shorten maintenance time and lower the risk of bundle or tube sheet damage during extraction.
Should I choose a diesel or electric bundle extractor?
Diesel bundle extractors are suitable for outdoor shutdowns, remote refinery areas and sites without stable power supply. Electric bundle extractors are suitable for workshops, indoor maintenance areas and plants with stable electricity and stricter emission requirements.
What information is needed to select the right bundle extractor?
To recommend the right model, Qingwei usually needs the tube bundle weight, bundle length, tube sheet diameter, heat exchanger layout, pulling direction, site space, power availability and photos or drawings of the exchanger. Fouling, corrosion and adhesion should also be considered when selecting pulling force.
Can the equipment be customized?
Yes. Qingwei can customize the pulling capacity, working length, applicable tube sheet diameter, support structure, power type and optional extensions according to the heat exchanger size and site conditions.
Can the same equipment be used for reinserting the tube bundle?
Yes. The tube bundle extractor can be used not only for pulling the bundle out, but also for controlled reinsertion after cleaning, inspection or repair. This helps improve alignment, reduce manual handling and lower the risk of damage.
Where are tube bundle extraction solutions commonly used?
Tube bundle extraction solutions are commonly used in refinery shutdowns, petrochemical plant turnarounds, heat exchanger cleaning, condenser maintenance, retubing projects and emergency exchanger repair. They are especially useful when the site has limited space, heavy bundles, strict HSE requirements or short maintenance windows.
