BE65

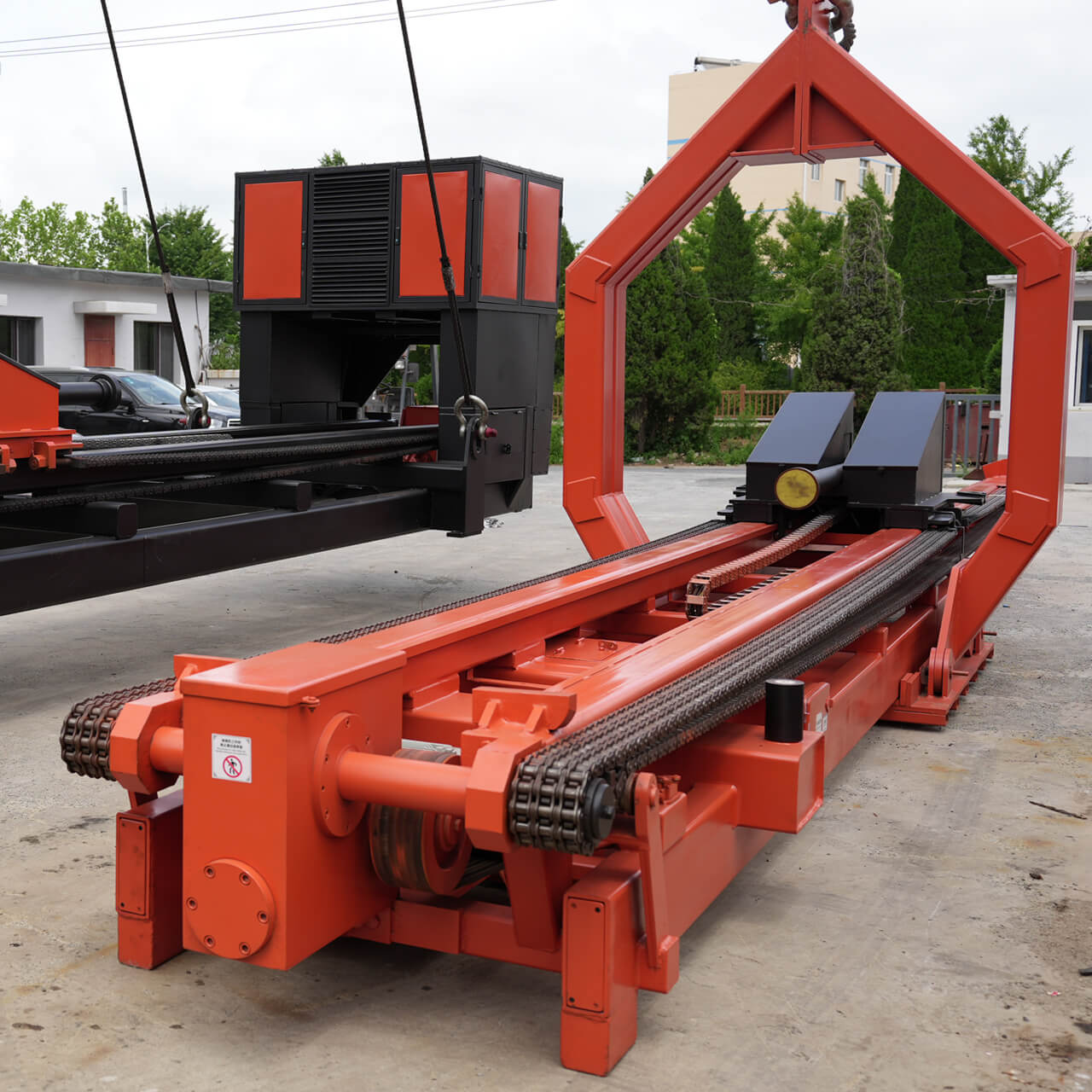

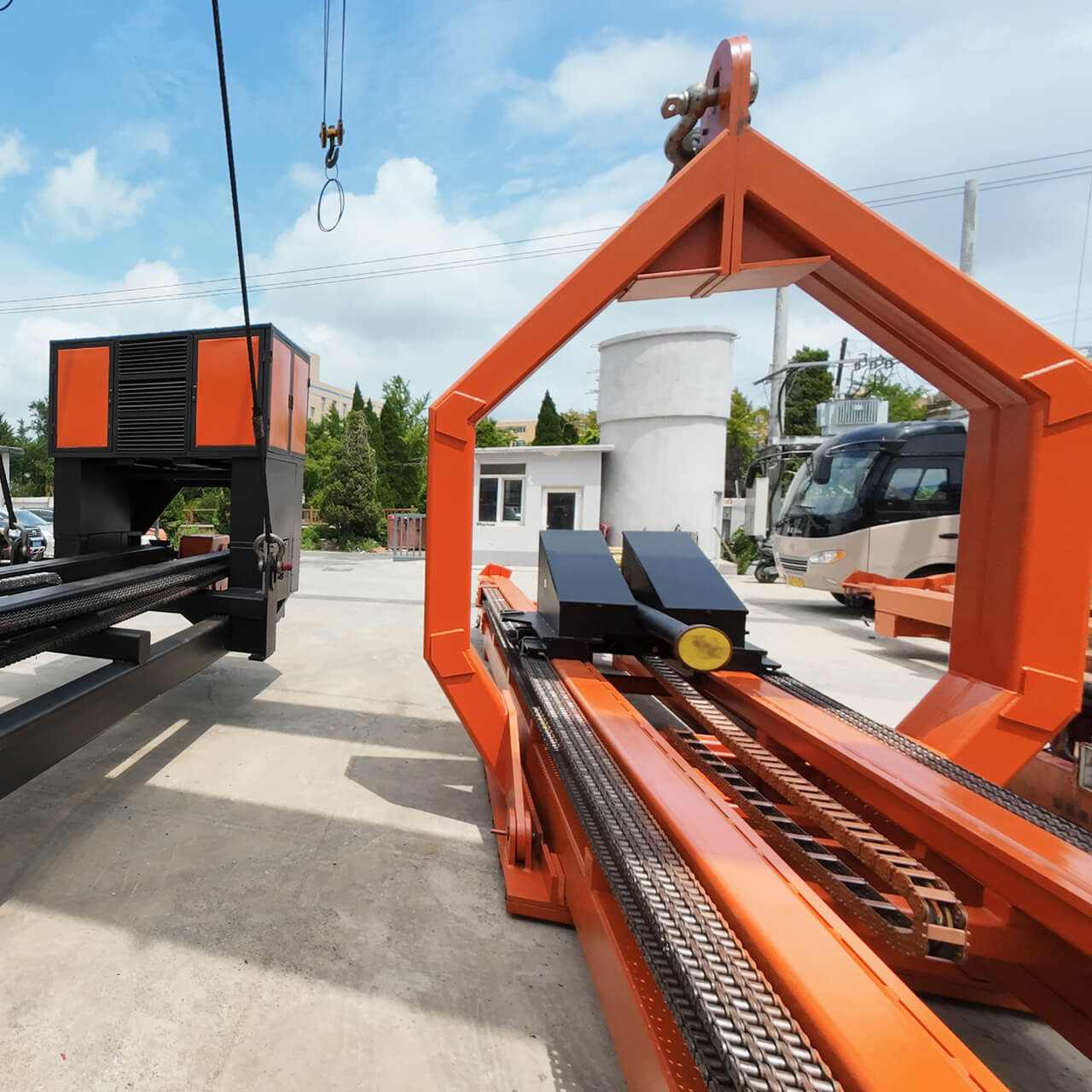

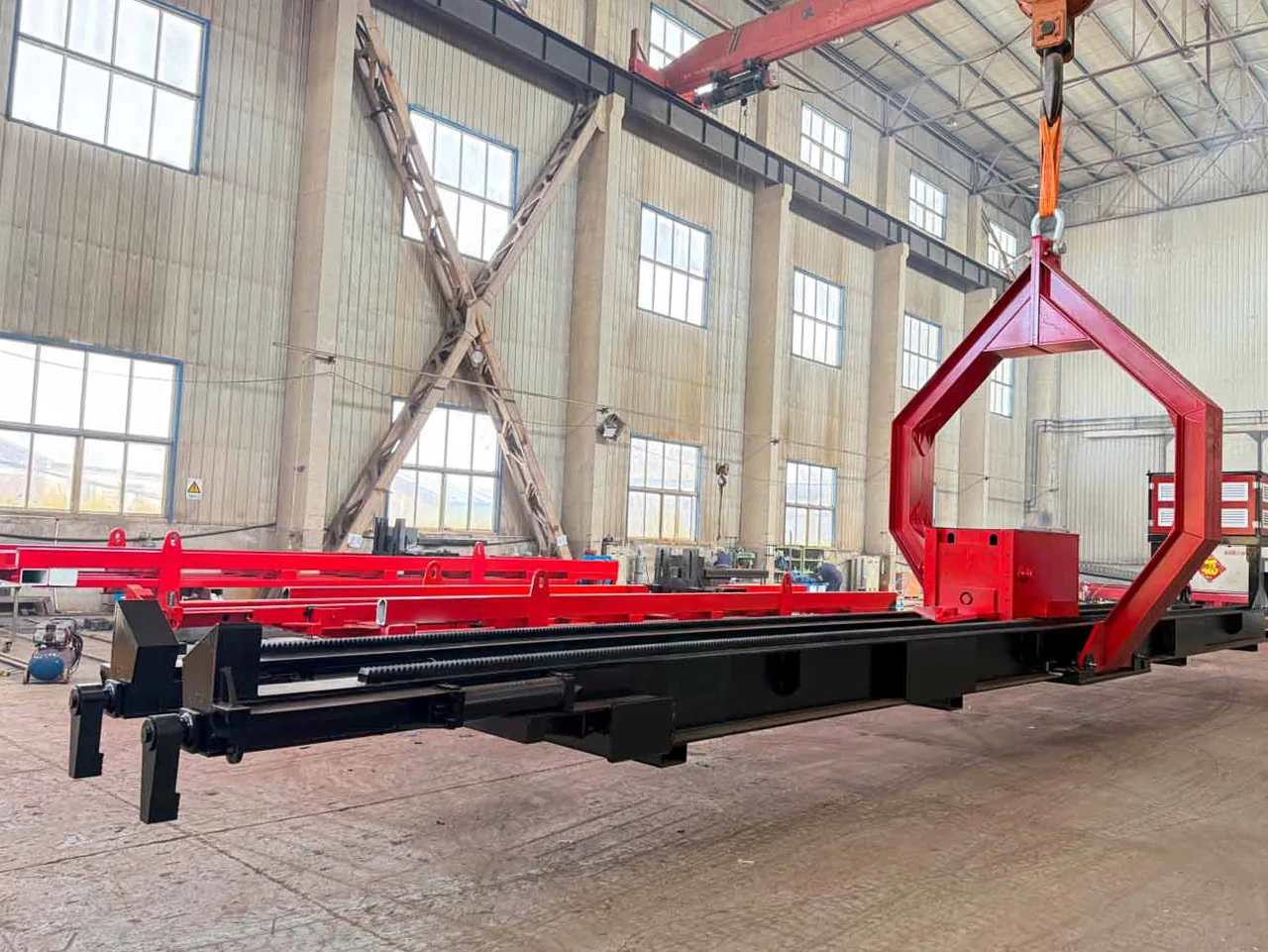

BE65 Diesel Tube Bundle Extractor
BE65-3000-10D is the BE65 diesel-hydraulic standard model, with a 65 T rated bundle load, 10 m standard bundle length and 9–13 m modular coverage.
- 65 T
- Rated Bundle Load
- 70 tf / 687 kN
- Maximum Pulling Force
- Ø2500–3000 mm
- Tube Sheet Diameter
Technical Data
Technical Specifications
These are the approved Qingwei BE Series standard values. Final equipment selection must also be checked against actual bundle weight, extraction resistance, exchanger height, site space and working conditions.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Series | BE65 | Complete Model | BE65-3000-10D |
| Rated Bundle Load | 65 T | Maximum Pulling Force | 70 tf / 687 kN |
| Applicable Tube Sheet Diameter | Ø2500–3000 mm | Maximum Model Diameter | Ø3000 mm |
| Standard Bundle Length | 10 m | Modular Coverage Length | 9–13 m |
