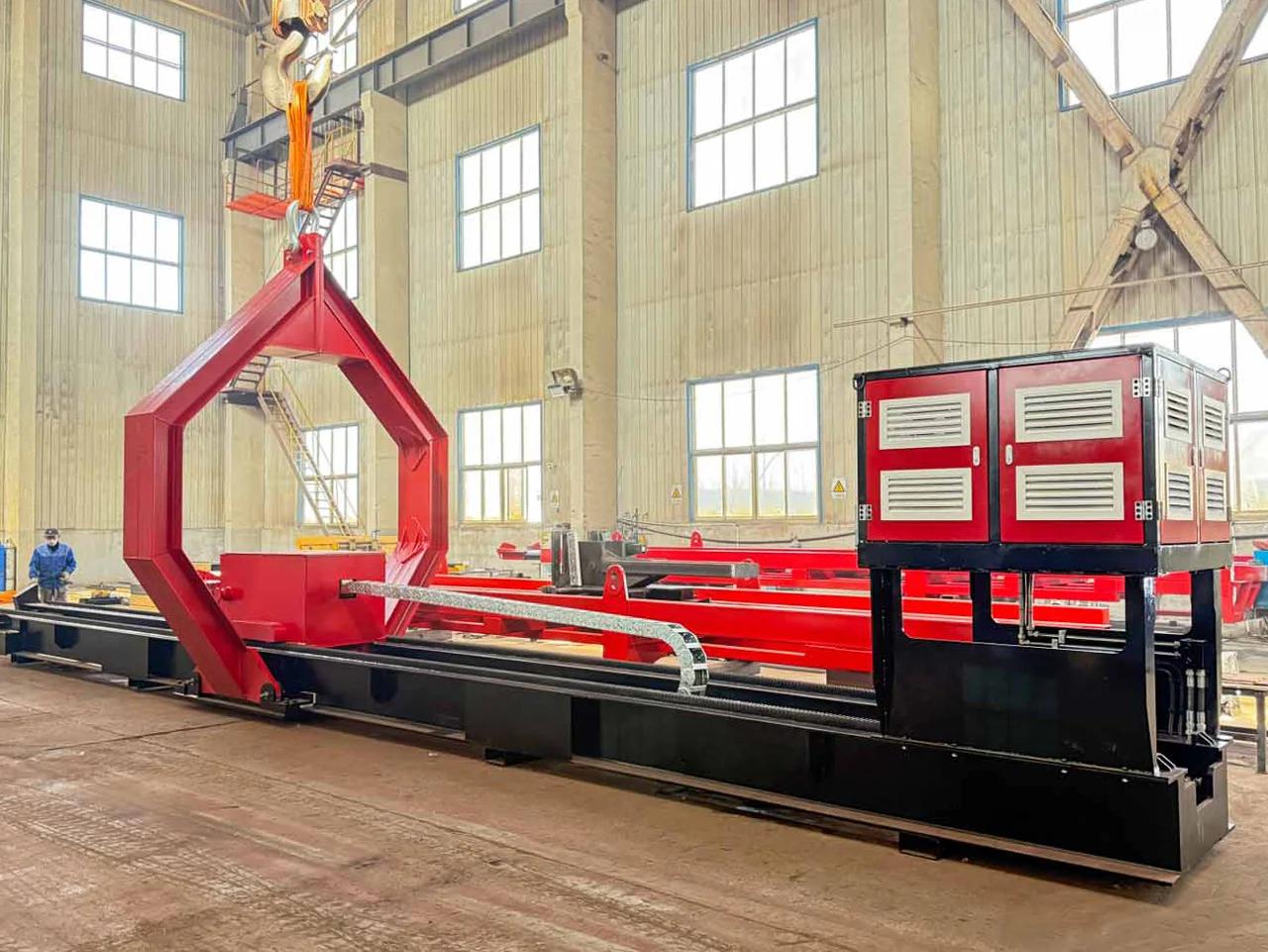

BE25 Diesel Tube Bundle Extractor
BE25-1800-7D is the BE25 diesel-hydraulic standard model, with a 25 T rated bundle load, 7 m standard bundle length and 6–9 m modular coverage.
- 25 T
- Rated Bundle Load
- 35 tf / 343 kN
- Maximum Pulling Force
- Ø1600–1800 mm
- Tube Sheet Diameter
Technical Data
Technical Specifications
These are the approved Qingwei BE Series standard values. Final equipment selection must also be checked against actual bundle weight, extraction resistance, exchanger height, site space and working conditions.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Series | BE25 | Complete Model | BE25-1800-7D |
| Rated Bundle Load | 25 T | Maximum Pulling Force | 35 tf / 343 kN |
| Applicable Tube Sheet Diameter | Ø1600–1800 mm | Maximum Model Diameter | Ø1800 mm |
| Standard Bundle Length | 7 m | Modular Coverage Length | 6–9 m |
