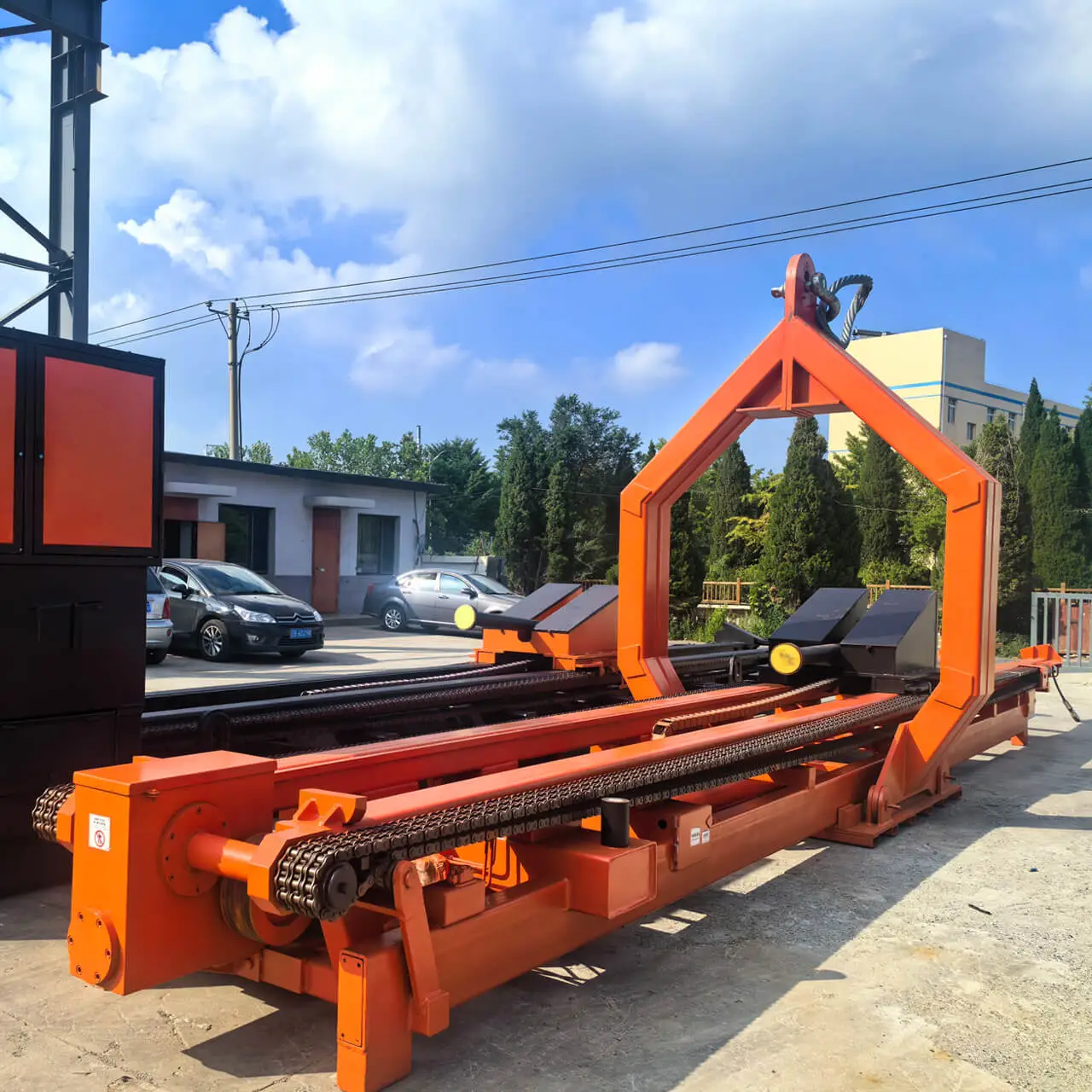

  • Front view of 45 ton bundle extractor

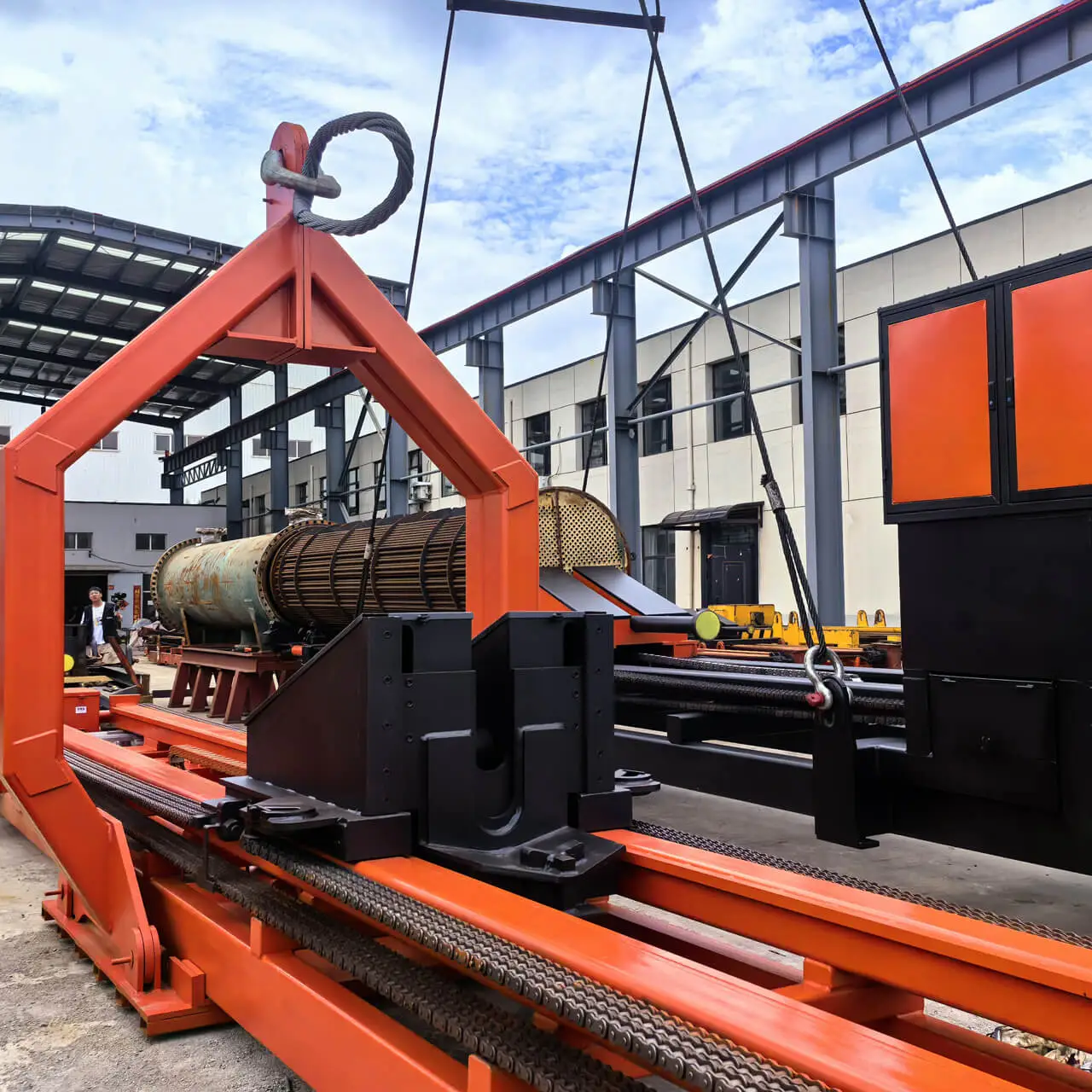

  • Side structure of hydraulic 45T bundle extractor in operation
  • Watch 45 ton bundle extractor demo video

45 Ton Bundle Extractor – Mid-Capacity Hydraulic Puller for Heat Exchangers

The 45 Ton Bundle Extractor is engineered for mid-sized tube bundle removal operations in standard refinery and petrochemical settings. With a balanced design between power and portability, it is ideal for maintenance tasks where greater pulling force is needed, without the bulk of larger models. The system is available with hydraulic or air-powered controls and can be configured for on-site or mobile platform use.

Key Features of the 45 Ton Bundle Extractor

  • Optimized for Mid-Scale Operations: Designed to remove heat exchanger bundles up to 8 meters long and 900 mm in diameter.
  • Robust and Efficient: Delivers 45 tons of pulling force while maintaining reliable performance in standard industrial environments.
  • Flexible Control Options: Available with wireless remote, manual lever, and pneumatic assist systems.
  • CE Certified and Field Proven: Tested in active refinery projects across the Middle East and Southeast Asia.

Technical Specs of 45 Ton Bundle Extractor

Specifications of Bundle Extractor

The 45 ton bundle extractor is a powerful and field-proven solution for medium-duty heat exchanger maintenance. It handles tube diameters up to 900 mm and extraction lengths up to 8000 mm. The hydraulic winch system provides up to 45 tons of extraction force, making it suitable for typical exchanger layouts found in chemical processing and energy production facilities.



For further insights, you can learn more about heat exchanger systems and bundle maintenance procedures on Wikipedia.

45

Max Extraction Force

(T)

2000

Max Tube Diameter

(mm)

10000

Max Bundle Length

(mm)

Robust and Durable 45T Puller

Precision-Engineered for Compact Jobs

Flexible, Lightweight, and Site-Proven

Available Models of 45t Bundle Extractor

Technical Specifications

Parameter

Max. bundle length

10000mm

Max. tube bundle diameter

1600mm

Max. force applied with winch

55,000kg

Weight capacity of exchanger – non shock

45,000 kg

Engine

CUMMINS: QSF2.8 t3CT71

RPM

2200

Power

53KW

Performance

Performance of the 45T Bundle Extractor

The 45T bundle extractor provides enhanced performance for standard heat exchanger extraction jobs. It offers a stronger pulling capacity while preserving transportability and ease of setup. Moreover, the hydraulic system is optimized for reliable and repeatable extraction cycles, minimizing operator workload and maximizing uptime during shutdown periods.

Features of 45t Bundle extractor

The 45T model is built with heavy-duty frames and components, making it suitable for high-use environments.

Hydraulic winch system and intuitive controls reduce operator stress and speed up extraction tasks.

Configurable for trailers, skids, or indoor exchanger bays.

Modular design ensures ease of service and minimal downtime.
