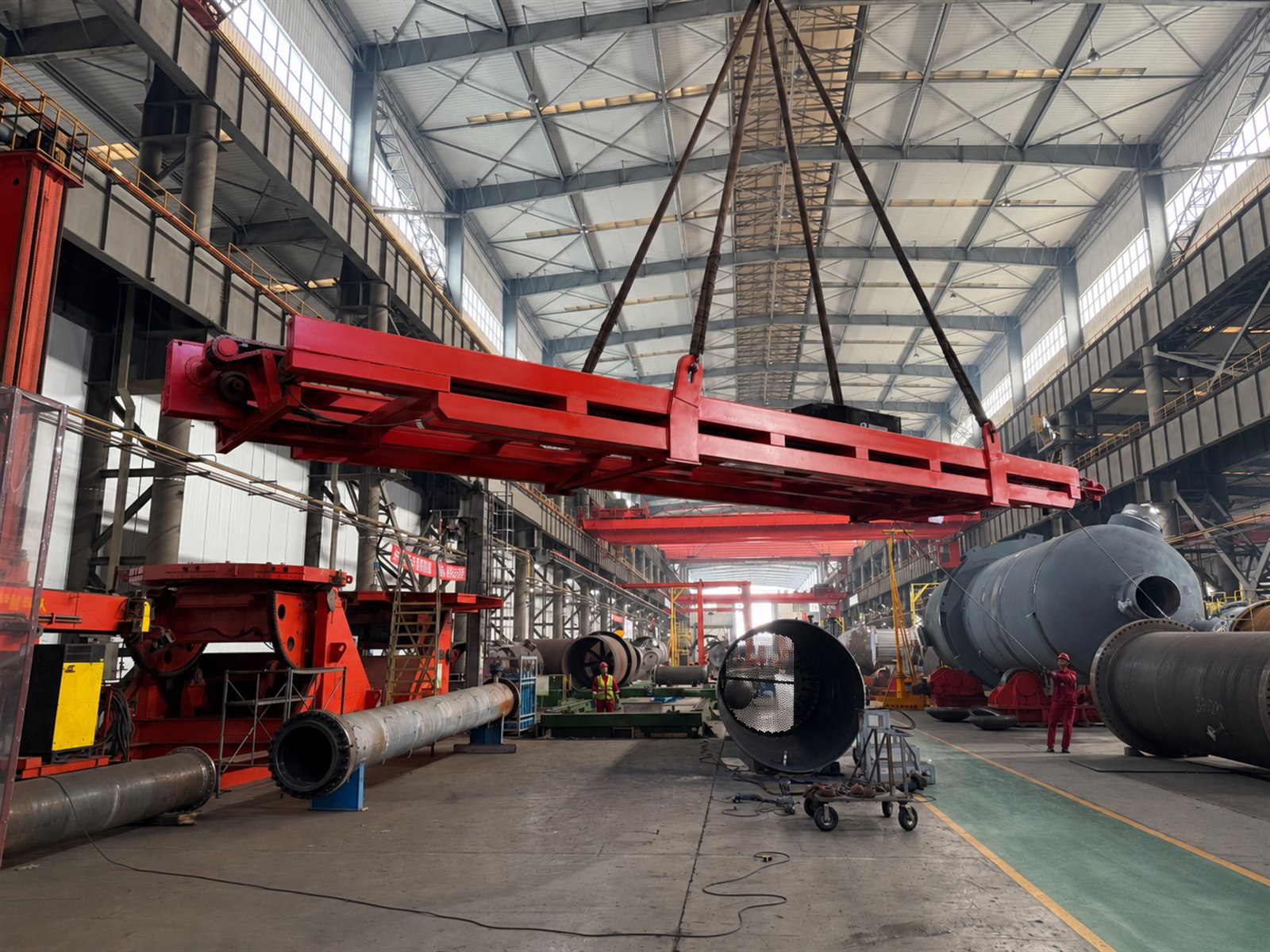

During heat exchanger maintenance, many teams focus first on pulling capacity. The tonnage of the tube bundle extractor is important, especially when a bundle is long, fouled or difficult to release. But once the tube bundle starts moving out of the shell, stable support becomes just as important as pulling force. Without the right support plan, the bundle can sag, twist, bind against the shell or become difficult to control during transfer.
For a refinery turnaround, petrochemical shutdown or contractor-led maintenance project, tube bundle extraction should be planned as a controlled handling operation from start to finish. A suitable tube bundle extractor or bundle puller helps create a more predictable pull, but the site team still needs to confirm how the bundle will be supported before, during and after extraction.
1. Support Is Part of the Pulling Plan
Tube bundle extraction is not finished when the first movement begins. The job includes loosening the bundle, pulling it through the shell, keeping it aligned, supporting the exposed length and preparing it for inspection, cleaning or repair. Each stage places different loads on the bundle, the extractor and the surrounding work area.
If support is treated as an afterthought, the operation may depend too much on temporary decisions at site. That can lead to additional crane time, unstable blocking, delays while support stands are adjusted, or unnecessary handling of a heavy shell and tube heat exchanger bundle. A better approach is to include support points, bundle travel distance and transfer method in the planning package before mobilization.
2. Understand the Bundle Before Choosing Equipment
Before selecting a bundle puller, maintenance teams should collect basic exchanger data. The most useful information includes bundle weight, bundle length, bundle diameter, tube sheet dimensions, exchanger elevation, pulling direction and the condition of the bundle. If the exchanger has heavy fouling or corrosion, the initial breakaway force may be higher than expected.
These details help engineers review not only pulling capacity, but also support requirements. A heavy but short bundle may need a different handling plan from a lighter but very long bundle. The longer the unsupported section becomes, the more important it is to control alignment and prevent bending. When drawings are incomplete, site photos and a short walkaround video can help identify real access conditions.
3. Keep the Bundle Aligned with the Shell
Alignment is one of the main reasons stable support matters. When the tube bundle is pulled out at an angle, it may rub against the shell, damage tubes or increase resistance. Even a small misalignment can become more serious as the exposed length increases. This is especially important for large shell and tube heat exchanger maintenance jobs where the bundle is heavy and the working space is limited.
The extractor should be positioned so the pulling line matches the exchanger centerline as closely as practical. The support surface should be level and strong enough for the machine, the bundle and any temporary stands. If the exchanger is elevated, working height and platform capacity must be checked before the job. In some cases, additional support or a customized approach may be required.
4. Plan for the Exposed Bundle Length
As the bundle comes out of the shell, the exposed length increases and the support condition changes. The team should know where the bundle will rest after the first stage of pulling and how it will be moved to the next work area. If rollers, saddles or temporary stands are required, they should be ready before pulling begins.
For refinery and petrochemical maintenance work, the available area may be shared with crane operations, scaffolding, inspection teams and cleaning equipment. A clear plan for bundle support reduces unnecessary movement and helps keep the pulling zone controlled. It also helps avoid situations where the bundle is partially extracted but the next support point is not ready.
5. Match Diesel or Electric Power to the Work Area
The choice between diesel and electric power can also affect bundle support and handling. A diesel tube bundle extractor is often practical for outdoor units, remote exchanger banks or sites where temporary power is not reliable. It can be moved between multiple exchangers during a shutdown with less dependence on external electrical supply.
An electric tube bundle extractor can be suitable for workshops, controlled maintenance zones or jobs where emissions and noise need tighter control. The right choice depends on site access, ventilation, power availability, working distance, operating restrictions and the number of exchangers planned for the turnaround.
6. Control the Pulling Zone
Stable support is not only a mechanical issue. It also depends on worksite control. The pulling zone should be kept clear of unnecessary personnel, loose tools, hoses and temporary materials. Communication between the extractor operator, lifting team and maintenance supervisor should be agreed before the first movement.
Before pulling begins, confirm isolation status, gas testing requirements, lifting points, emergency access and stop-work signals. The first movement should be slow and controlled. If the bundle binds, shifts or moves unevenly, the team should stop and review alignment rather than increasing pulling force without understanding the cause.
7. How Qingwei Equipment Supports Maintenance Planning
Qingwei Equipment manufactures diesel and electric tube bundle extractor solutions for heat exchanger maintenance in refinery, petrochemical and industrial shutdown environments. When reviewing a project, our engineers look at bundle dimensions, pulling direction, site access, working height, power preference and support requirements.
This information helps build a practical tube bundle extraction solution instead of selecting equipment only by rated pulling force. For maintenance contractors, EPC teams and turnaround planners, early technical review can make the site plan clearer before equipment arrives.
Final Thoughts
Stable support is one of the most important parts of safe and efficient tube bundle extraction. It protects the bundle, improves alignment, reduces unnecessary handling and helps the maintenance team keep control throughout the job. Pulling capacity matters, but support, access and handling details often decide how smoothly the work is completed.
